Installation
Installation
Installation

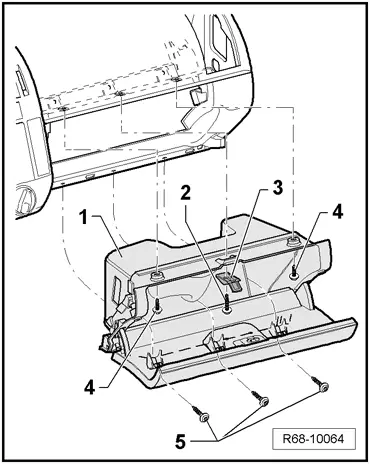

The installation occurs in the reversal sequence of removal, observing the following instructions:
–
Install latch support
-3-
and tighten the fastening screw
-2-
to (1,5 Nm).
–
Tighten fastening screws in the sequence
-4-
and
-5-
to (1.5 Nm).
