Seat padding, covers > < Rear seat rest unlocking button - removal and installation

Polo Mk4

Removal
Removal

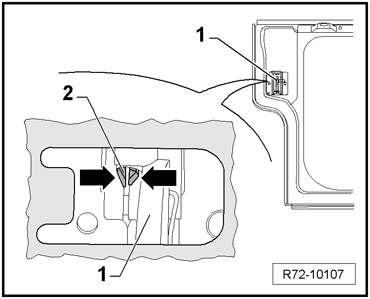

–  Fold the seat backing.
–  Press the release bar locks -2-, as detailed -arrows- , located on the rear seat lock hook -1-.
  R72-10107

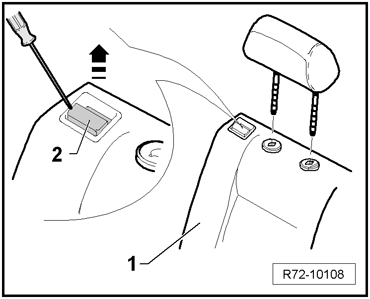

–  Fold the seat backing.
–  Disengage the release bar -2- towards -arrow-, by using a Screwdriver and remove it from the seat backrest -1-.
  Note
When removing the release bar -2- by using the Screwdriver, take care so not to damage it.
  R72-10108

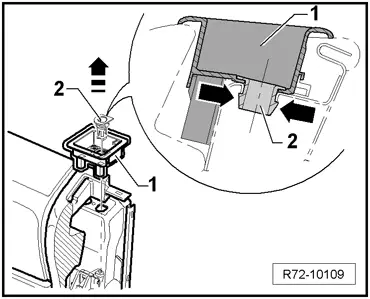

–  Remove partially the rear seat backrest lining and filling → Chapter.
–  Press clip locks -2- as detailed -arrows- and remove cover -1- towards -arrow-.
  R72-10109
