Volkswagen Polo Mk402 · Body
02 · Body & interior

Fox and Spacefox (Painting Manual)

Make
Volkswagen
Model
Polo Mk4
Section
Technical data › Body sealing › Fox and Spacefox
BodyFox and Spacefox
Fox and Spacefox
Product used
Polyurethane-based sealing adhesive → Chapter
Body repair paste → Chapter

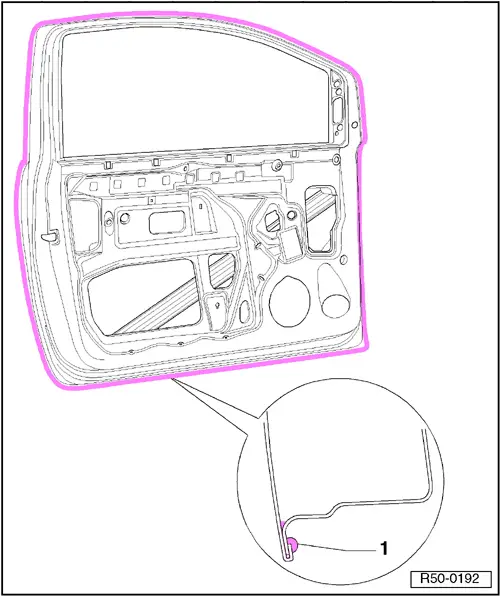

2-door Fox

1 - Polyurethane-based sealing adhesive cord (smooth with a brush)

4-door Fox and Spacefox

1 - Polyurethane-based sealing adhesive cord (smooth with a brush)

4-door Fox and Spacefox

1 - Polyurethane-based sealing adhesive cord (smooth with a brush)

Fox

1 - Polyurethane-based sealing adhesive cord (smooth with a brush)

Spacefox

1 - Polyurethane-based sealing adhesive cord

Fox and Spacefox

1 - Polyurethane-based sealing adhesive cord (smooth with a brush)

Fox

1 - Polyurethane-based sealing adhesive cord (smooth with a brush)

Fox and Spacefox

1 - Polyurethane-based sealing adhesive cord (smooth with a brush)

Fox and Spacefox

1 - Polyurethane-based sealing adhesive cord (smooth with a brush)

Fox and Spacefox

1 - Polyurethane-based sealing adhesive cord (smooth with a brush)

Fox and Spacefox

1 - Polyurethane-based sealing adhesive cord (smooth with a brush)

Fox and Spacefox

1 - Polyurethane-based sealing adhesive cord (smooth with a brush)

Fox and Spacefox

1 - Polyurethane-based sealing adhesive cord (smooth with a brush)

Fox and Spacefox

1 - Polyurethane-based sealing adhesive cord (smooth with a brush)

Fox and Spacefox

1 - Polyurethane-based sealing adhesive cord (smooth with a brush)

Fox

1 - Polyurethane-based sealing adhesive cord (smooth with a brush)

Spacefox

1 - Polyurethane-based sealing adhesive cord (smooth with a brush)

Fox and Spacefox

1 - Polyurethane-based sealing adhesive cord (smooth with a brush)

Fox and Spacefox

1 - Polyurethane-based sealing adhesive cord (smooth with a brush)

Fox

1 - Polyurethane-based sealing adhesive cord (smooth with a brush)

Spacefox

1 - Polyurethane-based sealing adhesive cord (smooth with a brush)

Fox

1 - Polyurethane-based sealing adhesive cord (smooth with a brush)

Fox

1 - Polyurethane-based sealing adhesive cord (smooth with a brush)

Spacefox

1 - Polyurethane-based sealing adhesive cord (smooth with a brush)

Fox and Spacefox

1 - Polyurethane-based sealing adhesive cord (smooth with a brush)

Fox

1 - Polyurethane-based sealing adhesive cord (smooth with a brush)

Spacefox

1 - Polyurethane-based sealing adhesive cord (smooth with a brush)

Spacefox

1 - Polyurethane-based sealing adhesive cord (smooth with a brush)

Fox Crossfox

1 - Polyurethane-based sealing adhesive cord (smooth with a brush)

Spacefox

1 - Polyurethane-based sealing adhesive cord (smooth with a brush)

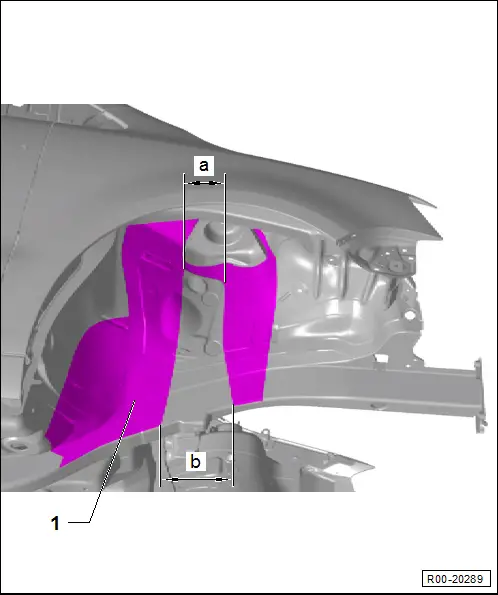

Fox and Spacefox

1 - Body repair paste (sprayed)
q   Thickness 0.01 in
a = 8.66 in
b = 13.78 in

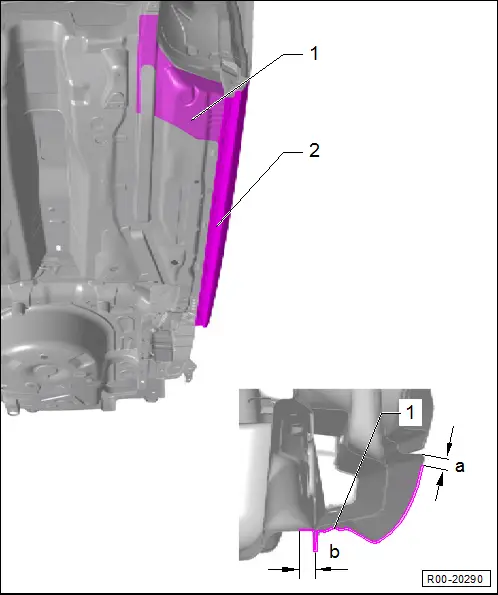

Fox and Spacefox

1 - Body repair paste (sprayed)
q   Thickness 0.3 mm
2 - Body repair paste (sprayed)
q   Thickness 0.5 mm
a = 20 mm below radius
b = 0.39 in

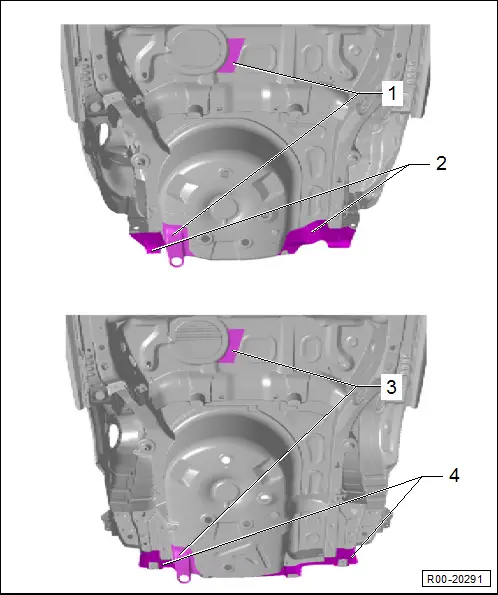

Fox and Spacefox

1 - Body repair paste (sprayed)
q   Fox
q   Thickness 0.01 in
2 - Body repair paste (sprayed)
q   Fox
q   Thickness 0.03 in
3 - Body repair paste (sprayed)
q   Spacefox
q   Thickness 0.5 mm
4 - Body repair paste (sprayed)
q   Spacefox
q   Thickness 0.03 in
