Santana and Quantum Product used Polyurethane-based sealing adhesive → Chapter Body repair paste → Chapter

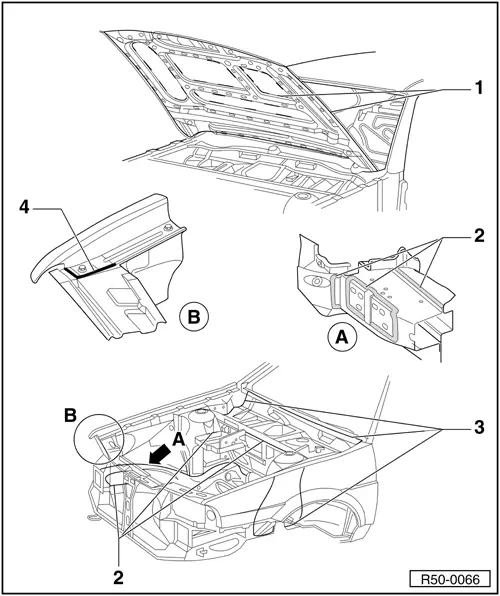

1 -	Polyurethane-based sealing adhesive cord

2 -	Polyurethane-based sealing adhesive cord (smooth with a brush)

3 -	Paste cord for body repairs (smooth with a brush)

4 -	Paste cord for repairs

Seal the holes with self-adhesive PVC tape

1 -	Paste cord for body repairs (smooth with a brush)

2 -	Apply body repair paste under the vehicle

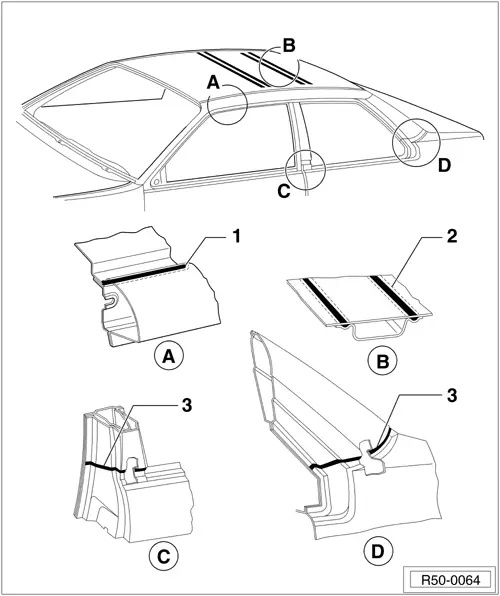

1 -	Polyurethane-based sealing adhesive cord (smooth with a brush)

2 -	Polyurethane-based sealing adhesive cord

3 -	Paste cord for body repairs (smooth with a brush)

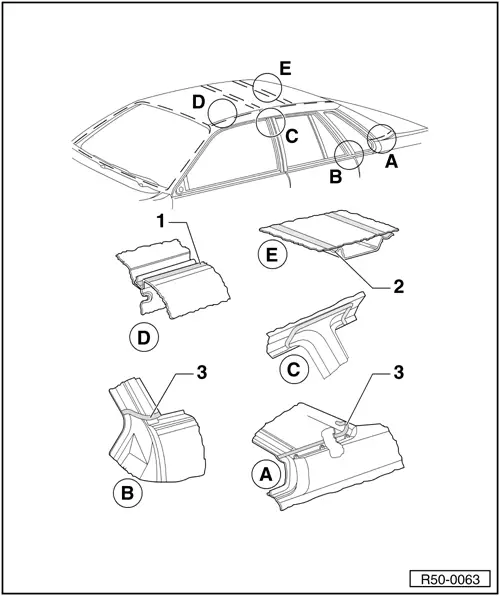

1 -	Polyurethane-based sealing adhesive cord (smooth with a brush)

2 -	Polyurethane-based sealing adhesive cord

3 -	Paste cord for body repairs (smooth with a brush)

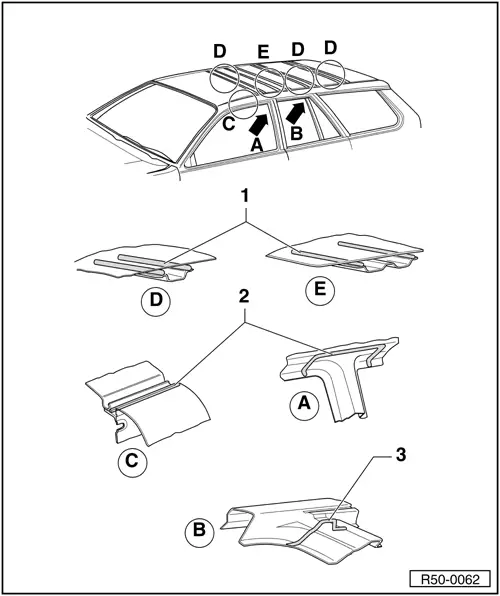

1 -	Polyurethane-based sealing adhesive cord

2 -	Polyurethane-based sealing adhesive cord (smooth with a brush)

3 -	Paste cord for body repairs (smooth with a brush)

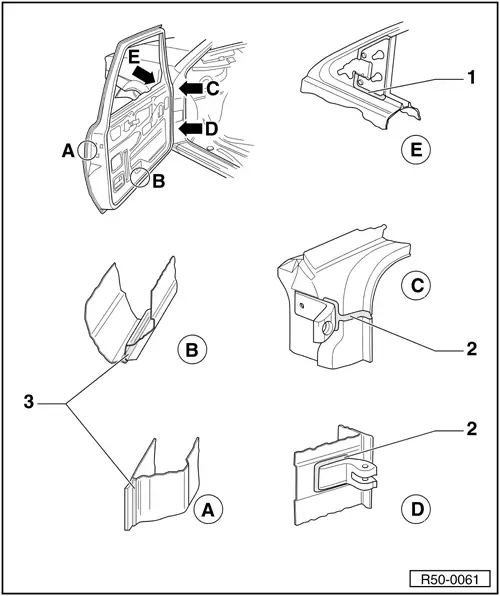

1 -	Polyurethane-based sealing adhesive cord (smooth with a brush)

2 -	Paste cord for body repairs

3 -	Polyurethane-based sealing adhesive cord

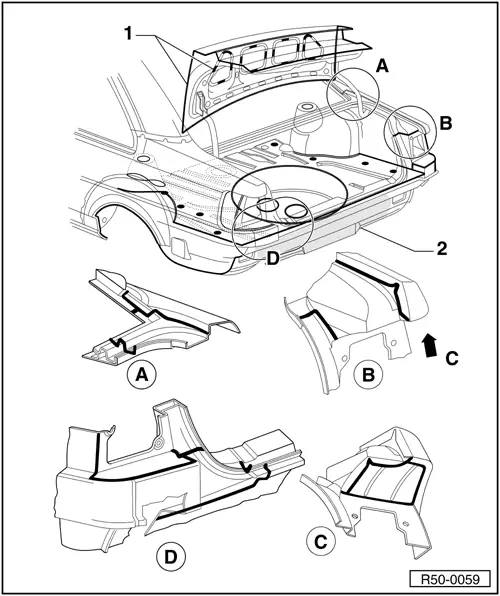

1 -	Paste cord for body repairs

2 -	Polyurethane-based sealing adhesive cord

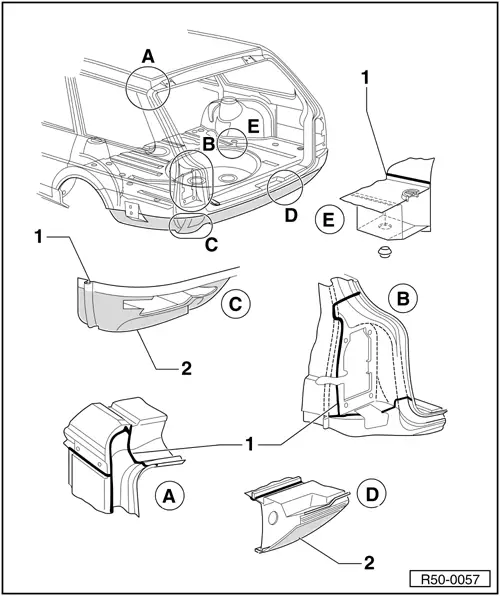

1 -	Polyurethane-based sealing adhesive cord

2 -	Apply body repair paste (sprayed)

Note For all other applications use paste cords for body repairs (smooth with a brush)

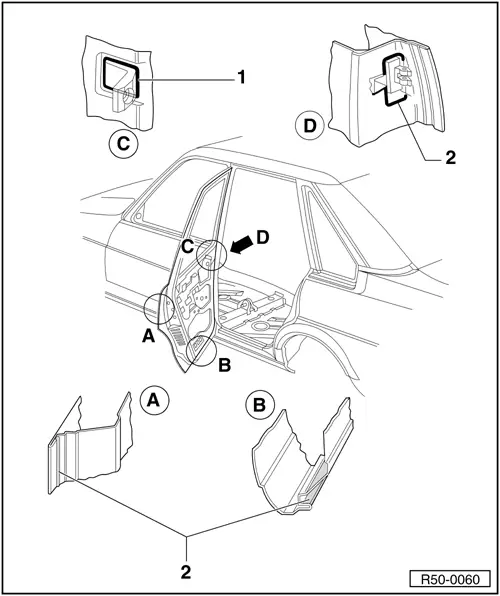

1 -	Polyurethane-based sealing adhesive cord (smooth with a brush)

2 -	Polyurethane-based sealing adhesive cord

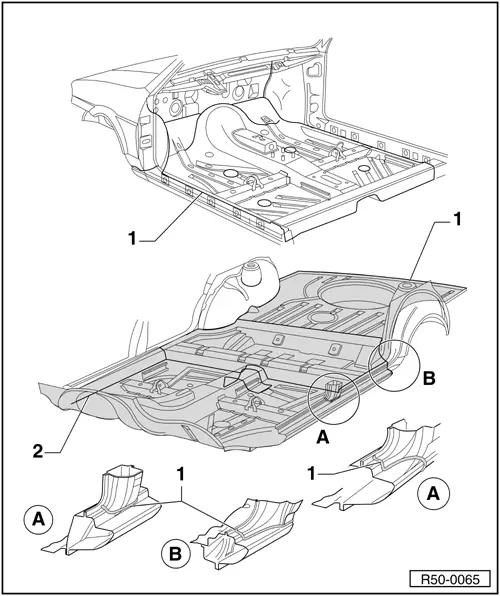

1 -	Paste cord for body repairs (smooth with a brush)

2 -	Apply body repair paste (sprayed)
