Polo Mk4
|
|
| pos. | PR number | 1LG / 1ZF / 1ZG / 1LQ / 1ZJ / 1LR / 1ZR | ||
| (with power steering) | ||||
| Brake cylinder | Ø mm | 20,64 | ||
| Servo brake | Ø in | 8,544'' | ||

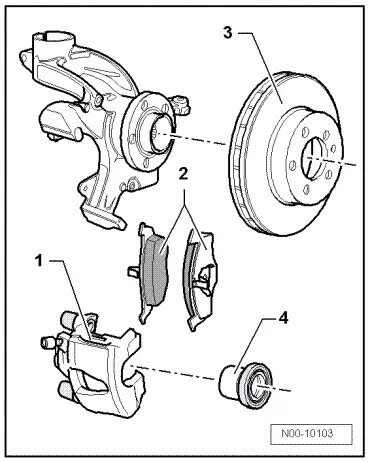

| 1 | Brake caliper | FS III (14”) | ||
| 2 | Brake pad, thickness | mm | 14,17 | |
| 3 | Brake disc | Ø mm | 256 | |
| Brake disc, thickness | mm | 22 | ||
| 4 | Brake caliper, plunger | Ø mm | 54 | |
