Rear wheel disc brake

Rear wheel disc brake

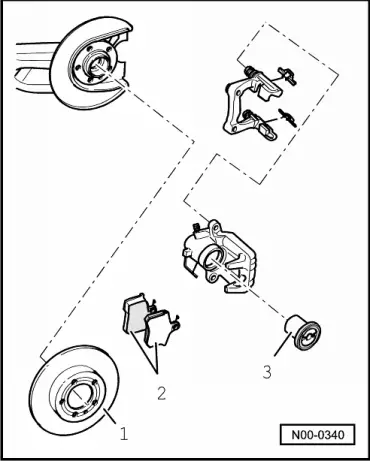

  N00-0340
pos.PR number 1KK / 1KT
 Brake cylinderØ mm20,64
 Servo brakeØ in8,544''
1Brake discØ mm232
 Brake disc, thicknessmm9
2Brake pad, thicknessmm11,4
3Brake caliper, plungerØ mm38
