Polo Mk4

Exhaust system components - remove and install
Exhaust system components - remove and install
Special tools and workshop equipment required

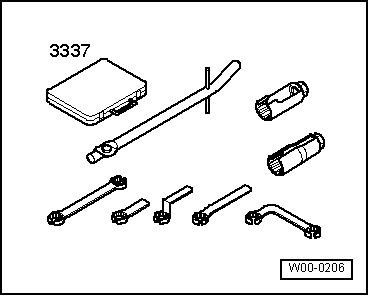

t  Socket set for Lambda probe -3337-
  W00-0206

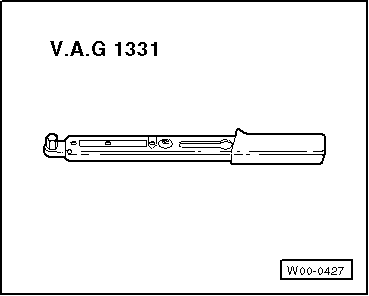

t  Torque wrench - 5 to 50Nm (fit. 1/2") -VAG 1331-
  Note
t  After performing works on the exhaust system, make sure the system is not stressed and provides enough distance from the body. If necessary, loosen the double clamp(s) and align the muffler and exhaust tube in order to provide enough space from the body throughout the path and to demand equally the supporting cushions/grommets.
t  Always replace self-locking nuts.
  WARNING
Always replace self-locking nuts and screws subject to angular torque.
  W00-0427
