Test equipment, tools, and material

Note

Other available test equipment and tools may also be used. Refer to the → Special Tools and Workshop Equipment Catalogue.

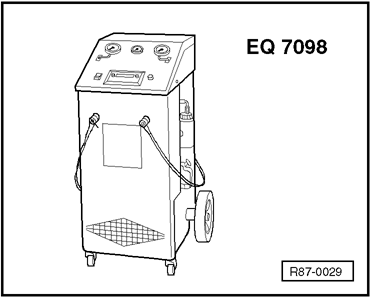

Climate control recovery, recycling and refill set or EQ 7098 -VAS 6008-

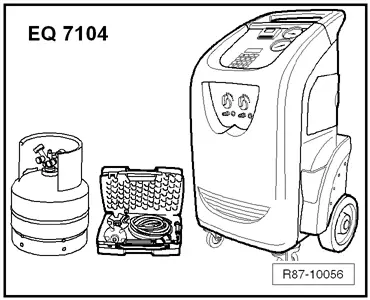

Climate control recovery, recycling, refilling, and cleaning set -EQ 7104-

Climate control recovery, recycling, refilling, and cleaning set -EQ 7105-

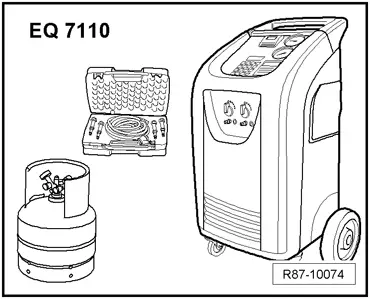

Climate control recovery, recycling, refilling, and cleaning set -EQ 7110-

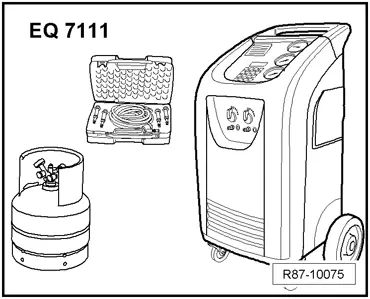

Climate control recovery, recycling, refilling, and cleaning set -EQ 7111-

R134a air conditioning leak detector. -VAG 1796-

Pressure gauges with nitrogen pressure regulator (maximum pressure: 15 bar)

1 -	Pressure gauges with pressure regulator

2 -	T Connection

3 -	Flexible pressure line (inner diameter 5 mm, length 2 m)

4 -	Nitrogen bottle
