Polo Mk4
Heating, ventilation, air conditioning
Heating, air conditioning
Air conditioner
Refrigerant circuit - assembly overview / mpressor_remove_and_install/">Compressor - remove and install
Installation
Installation
Installation
The installation occurs in the reversal sequence of removal, observing the following instructions:
–
Observe the fastening screw tightening sequence:
t
1.0L (ARA), 1.4L (BBY, BKY) and 1.6L (BAH, BPA) engines
→ Chapter
.
t
1.4L (BAY) engines
→ Chapter
.
t
1.4L (BBY, BKY) engines
→ Chapter
.
t
1.6L (CCRA) engines
→ Chapter
.
t
1.9L (ASY) engines
→ Chapter
.
t
2.0L (BBX, CFEA) engines
→ Chapter
.
–

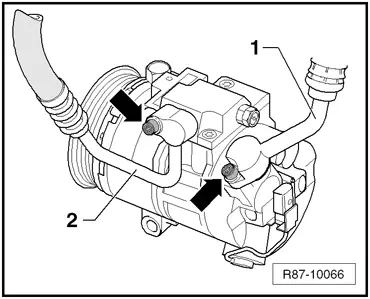

Remove the refrigerant hoses
-1-
and
-2-
.
–
Tighten fastening screws
-arrows-
to (22 ± 1 Nm).
–
Observe the installation indications for the new compressor
→ Chapter
.
