Polo Mk4

Heat exchanger/engine compartment partition panel sealing
Heat exchanger/engine compartment partition panel sealing
For vehicles equipped with a ventilation / heating system.
t  Vehicles with air conditioning system → Chapter.

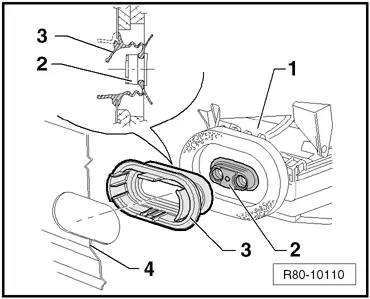

1 - Plenum chamber (Ventilation / Heating)
q   Remove and install → Chapter.
2 - Heat exchanger
q   Remove and install → Chapter.
3 - Heat exchanger sealing
q   Replace if damaged.
4 - Engine compartment's partition panel
