Polo Mk4
Power transmission
5 - Speed manual gearbox 02T
Gearbox mechanics,operation, construction,diff.
Transmission oil level - check and replenish
Oil level - replenish
Oil level - replenish
Oil level - replenish
To fill completely the reservoir with new oil:
–

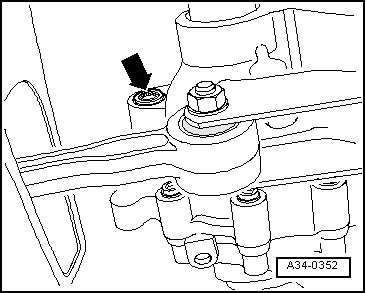

Loosen screw
-seta-
.
–
Fill with oil up to the lower edge of the checking hole.
–
Install screw
-arrow-
.
–
Start engine, engage a gear and let the transmission functioning by approx. 2 minutes.
–
Stop engine and replenish the oil up to the lower edge of the checking hole.
–
Install screw
-arrow-
.
