Transmission - remove and install

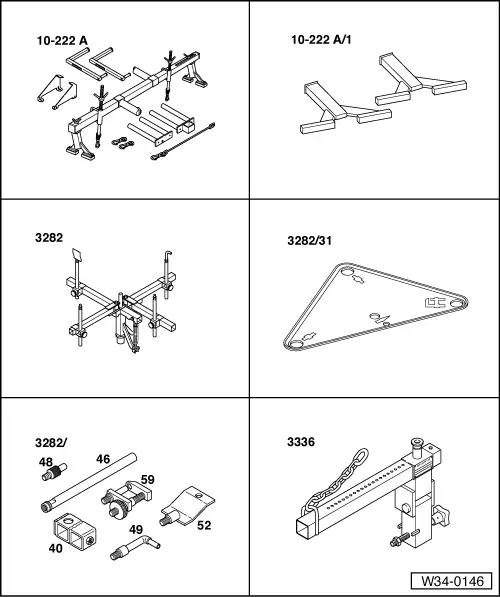

Special tools and workshop equipment required

t	Support or VW 061 -10-222A-

t	Support -10-222 A/1-

t	Support -3282-

t	Adjustment plate -3282/31-

t	Pin -3282/48-

t	Support -3282/59-

t	Support -3336-

t	Torque wrench - 5 to 50Nm (enc. 1/2") -VAG 1331-

t	Torque wrench - 40 to 200 Nm (enc. 1/2") -VAG 1332-

t	Transmission jack or engine set + transmission or EQ 7081 -VAG 1383A-

t	Additional hook -10-222 A/2-

No illustration:

Lifting eyes -030 103 390 F-(on pulley side), -030 103 390 G-(on inertial flywheel side).
