Removal –  Loosen the fastening nut (dodecagonal) from the drive semi-shaft → Chapter. –  Remove the front wheel.

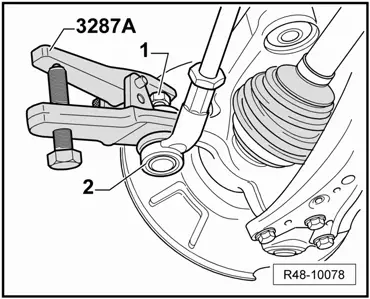

–  Loosen the hexagonal nut -1- at the steering terminal.   WARNING To protect the thread, leave the nut screwed a few turns at the steering terminal. –  Separate the steering terminal -2- from the wheel roller bearing case using the Puller -3287 A-.

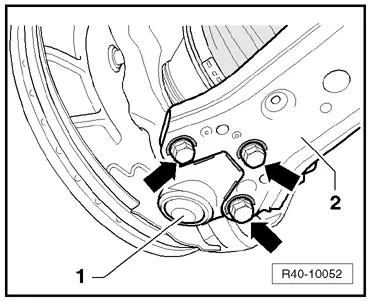

–  Mark the installation position for the screws -arrows- from the the swivel guide -1- on the wishbone -2-.

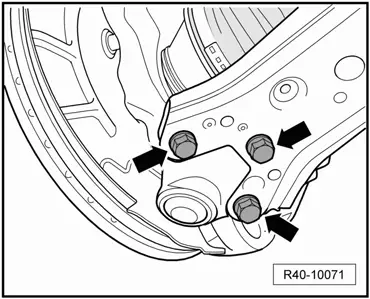

–  Remove the fastening screws -arrows-. –  Remove the suspension column with the swivel guide, moving it away from the wishbone. Continuation for vehicles with anti-roll bar:

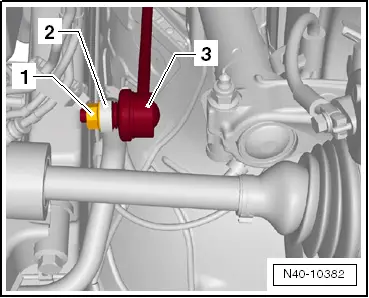

–  Remove the hexagonal nuts -1- from both sides of the coupling rod -3-. –  Remove the coupling rod -3- from the anti-roll bar -2-. Continuation:

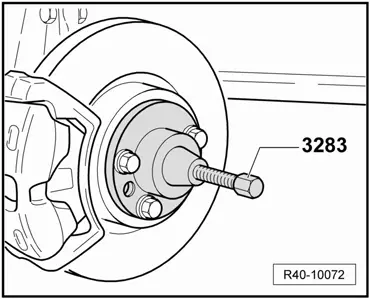

–  Press the drive semi-shaft out of the roller bearing case. To do this, install the Puller -3283- as shown in the figure.   Note While the drive semi-shaft is being pressed outwards, observe if there is enough free space. –  Remove the wheel roller bearing case with the shaft articulation out of the wishbone.

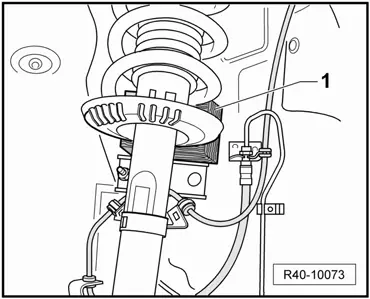

–  Pull the suspension column outward and support it with a wooden block -1- (for example) and simultaneously remove the drive semi-shaft out from the wheel roller bearing. –  Fasten the drive semi-shaft to the body with the aid of a wire.   Note The final drive must not be pressed down. Otherwise, the internal articulation will be damaged due to excessive tilting. –  Remove the disc brake caliper and tie it to the body with wire → Brake system; Rep. gr.46 –  Remove the break disc and protective cover → Break system; Rep. gr.46. –  Remove the speed sensor on the front axle → Break system; Rep. gr.45.   Note Position the Transmission or engine + transmission set jack or EQ 7081 -VAG 1383A- and Tray for hydraulic jack EQ 7081 -VAG 1359/2- underneath (danger of accident from falling parts when extracting the wheel hub and the wheel roller bearing).
