| Compress the helical spring by using the Compressor
device or VW 5340 -VAG 1752/1- until the axial
ball bearing on the upper part is free. |
| –
| Remove the hexagonal nut from the shock absorber rod. |
| –
| Remove the suspension column parts and spring individually
with the Compressor device or VW 5340 -VAG 1752/1-. |

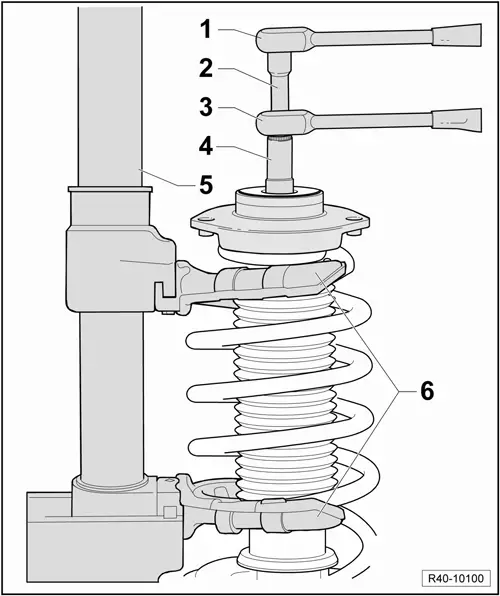

| 1 - | "Torque wrench - 40 to 200
Nm (enc. 1/2")" -VAG 1332- |
| 3 - | Wrench set -T10001/11- |
| 4 - | Wrench set -T10001/5- |
| 5 - | Compression device or VW 5340 -VAG 1752/1- |

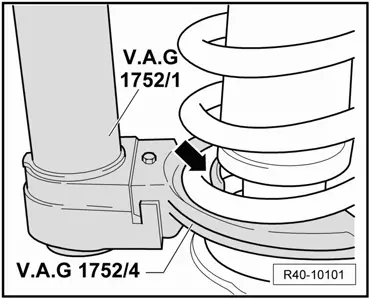

| 6 - | Spring seat -VAG
1752/4- |
WARNING | Initially, tension the spring until the upper spring plate
pressure is relieved. |
|
|
|
|
