Hydraulic pump operating pressure - check

Hydraulic pump operating pressure - check
Special tools and workshop equipment required

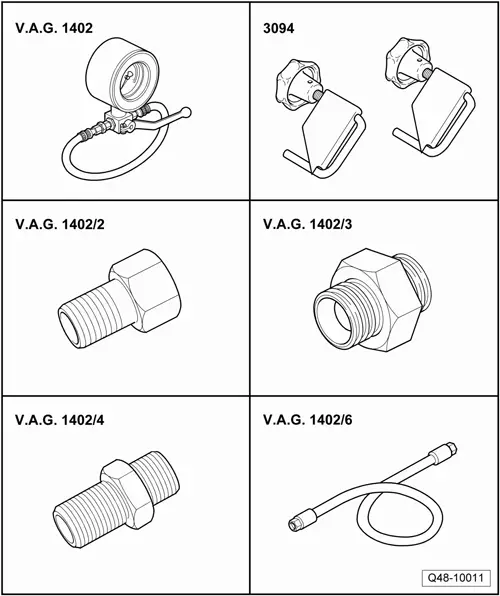

t  Control equipment for power steering -VAG 1402-
t  Clamps (diameter 25 mm) -3094-
t  Adapter -V.A.G 1402/2-
t  Adapter -V.A.G 1402/3-
t  Adapter -V.A.G 1402/4-
t  Adapter -VAG 1402/6-


t  Pliers or Hazet 790-1 -VW 5024-

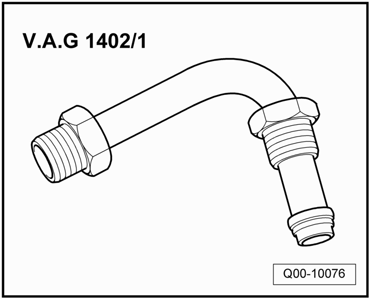

t  Adapter -V.A.G 1402/1-

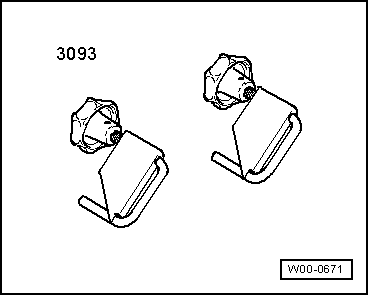

t  Clamps (diameter 1.57 in) -3093-

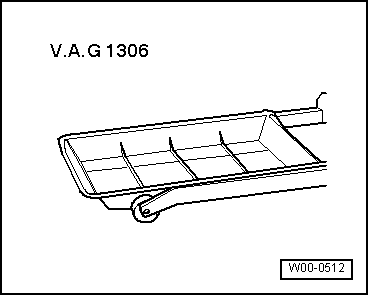

t  Oil collecting tray -V.A.G 1306-
