RadioR„ALPHA“ ► 12/04

Radio -R-„ALPHA“ ► 12/04

The Radio -R-„ALPHA“ is not equipped with self-diagnosis. Upon repair work or troubleshooting, query: → Current flow diagrams, Electrical fault finding and Fitting locations.

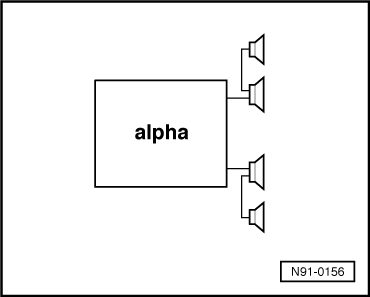

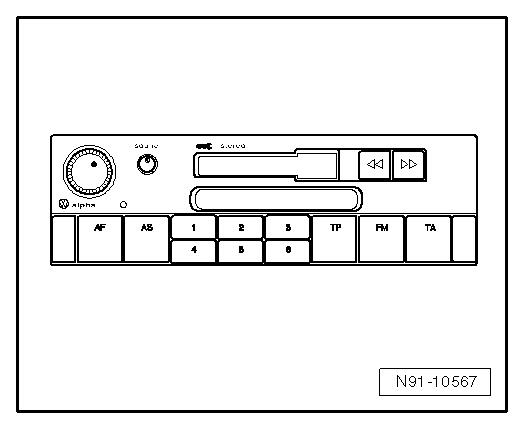

The Radio -R-„ALPHA“ consists of the device itself → Item, the antenna Antenna -R11- → Item, and its respective speakers:

t	one Left front speaker for treble sounds -R20- and one Right front loudspeaker for treble sounds -R22- → Item, in each lining of column A.

t	one Left front speaker for bass sounds -R21- and one Right front speaker for bass sounds -R23- → Item, in each lining of the front door.
