Volkswagen Workshop Service and Repair Manuals > Polo Mk4 > Vehicle electrics | Electrical system | Lights, lamps, switches outside | Main headlights (07/11?) | Main headlights (07/11?) - remove and install

Installation

Installation is performed in reverse sequence to the removal, observing the following:

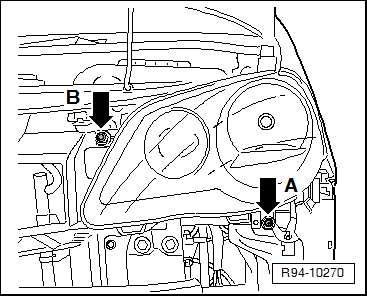

–	Tighten fastening screws in the following order: -A- and then -B- with torque (3,5 Nm).

–	Tighten the upper fastening screw -arrow- to (4 Nm).

–	Check the headlight assembly position for uniformity of the clearance dimension. If the clearance between the headlight and the body is not even, correct the assembly position → Chapter.

–	Check the headlight operation.

Note

After installing, the adjustment of the headlights must be checked → Chapter.
