Polo Mk4

Rear window wiper blade resting position - adjust
Rear window wiper blade resting position - adjust
Vehicles (► 07/06):

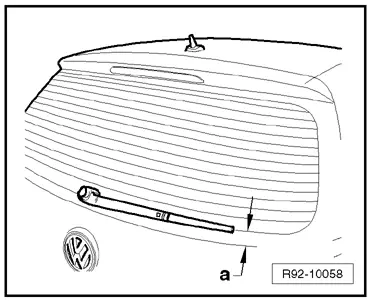

The distance -a- between the rear window wiper blade lip and the lower edge of the window must be of 27 ± 5 mm.
Vehicles (08/06 ►):
  N92-0116
The distance -a- between the rear window wiper blade lip and the lower edge of the window must be of 44 ± 5 mm.
–  If necessary, adjust the rear window wiper resting position by moving the wiper rod.
–  Tighten the securing nut with the specified torque → Chapter.
  R92-10058
