| Control unit for the on-board electrical system -J519- |
| The Control unit for the on-board electrical system -J519- is located behind the dashboard, under the relay
carrier. |
| The Control unit for the on-board electrical system -J519- has the following functions: |
| t
| Management of the electric load |
| t
| Command of internal lighting |
| t
| Command of the pre-supply fuel pump |
| t
| Command of windscreen washer and wiper, timer drive, and rain
sensor |
| t
| Heating of exterior mirror, and rear window |
| t
| Command of flashing and warning light |
| t
| Speed programmer (transforms signals for the CAN-Bus data network) |
| t
| Remote unlocking of rear lid |
| t
| Dashboard and Combined instrument -K- lighting |
| t
| Electric window drive data |
| t
| Diagnosis interface for the data bus -J533- |
| Locating defects and indicating faults: |
| The Control unit for the on-board electrical system -J519- is equipped with a self-diagnosis function. |
| For troubleshooting, use the Vehicle diagnostic,
testing and information system -VAS 5051- or the Vehicle diagnosis and technical information system -VAS 5052- or later equipment. |
| –

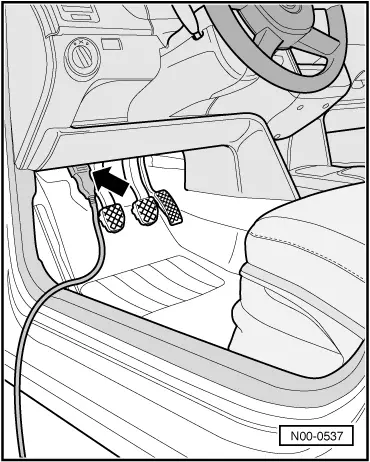

| Connect the Vehicle diagnostic, testing and information
system -VAS 5051- or the Vehicle diagnosis
and technical information system -VAS 5052- or
later equipment → General informationl; Rep. gr.97 on the 16-pin diagnostic connection -T16-. |
|
|
|
