Removing and installing the multi-pin connector on the engine side (version 2)
Removing and installing the multi-pin connector on the engine side (version 2)
Removing and installing the multi-pin connector on the engine side (version 2)
Removal:
–
Turn off the ignition and all electrical equipment, and remove the key from ignition.
–
Disconnect the Battery -A-
→ Chapter
.
–
Remove the windscreen wiper mechanism
→ Chapter
.
–

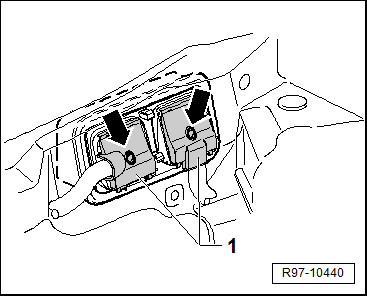

Loosen fastening screws
-arrows-
and disconnect the connectors
-1-
.
Installation:
Installation is performed in reverse sequence to the removal, observing the following:
–
Screw on the fastening screws
-arrows-
with torque of (7 Nm).
