Polo Mk5
| Removing front bumper cover, Polo »GTI« |
| – | Removing headlights → Vehicle electrics; Electrical system; Rep. gr.94 |

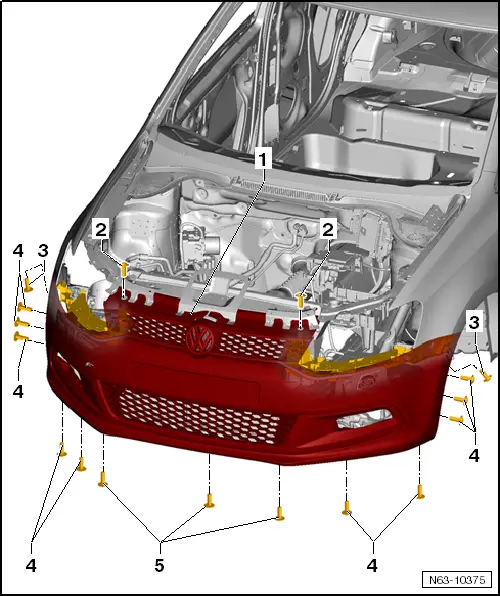

| – | Remove bolts -2-. |
| – | Remove bolts -3- (pointing upwards) on left and right of wheel housing. |
| – | Unscrew bolts -4- from wheel housing. |
| – | Unscrew bolts -4- and -5- from below. |
| Further dismantling requires the help of a second mechanic. |
| – | Pull front bumper cover -1- out of fasteners of guides on left and right of wing -arrows c-. |
| – | Release fasteners on lateral guides -arrows b- and radiator grille -arrows a-. |
| – | Release fasteners -3- behind radiator grille -arrows d-. |
| – | With the aid of a second mechanic, pull off front bumper cover -1- parallel -arrows d- from vehicle. |
| – | Remove connectors of all installed electrical components. |
| Notes and procedures for parking aid are located in → Electrical system; Rep. gr.94. |
| Instructions and work specifications for the Park Assist system can be found in → Electrical system; Rep. gr.94 |
| – | Disconnect washer fluid hose connectors (if fitted) → Electrical system; Rep. gr.92. |
