Polo Mk5

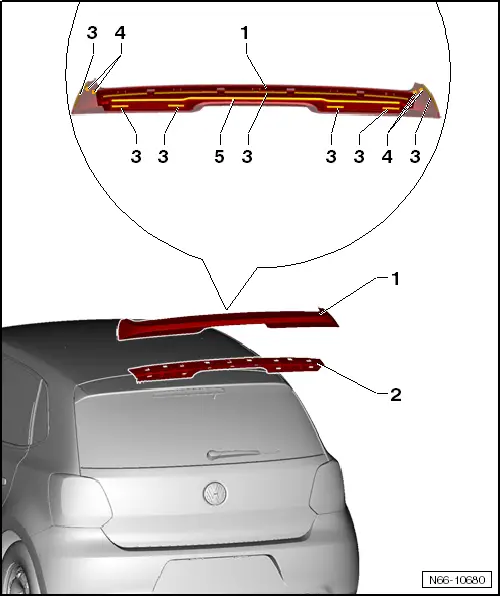

| Assembly overview - roof spoiler, Polo »GTI« |
| 1 - | Roof edge spoiler |
| q | Material: PUR-MF23. |
| q | Removing → Chapter |
| q | Installing → Chapter. |
| 2 - | Adapter |
| q | Material: PC + PET-MD20. |
| q | Engaged in roof spoiler |
| q | Must always be replaced. |
| q | Removing → Chapter |
| 3 - | Double-sided adhesive tape |
| 4 - | Adhesive points |
| q | Qty. 2 on each side. |
| q | 1-component glass adhesive -DH 009 100 A2- |
| 5 - | Adhesive bead |
| q | 1-component glass adhesive -DH 009 100 A2- |
| q | On full length: width = 7 mm, height = approx. 7 mm |
