Polo Mk5

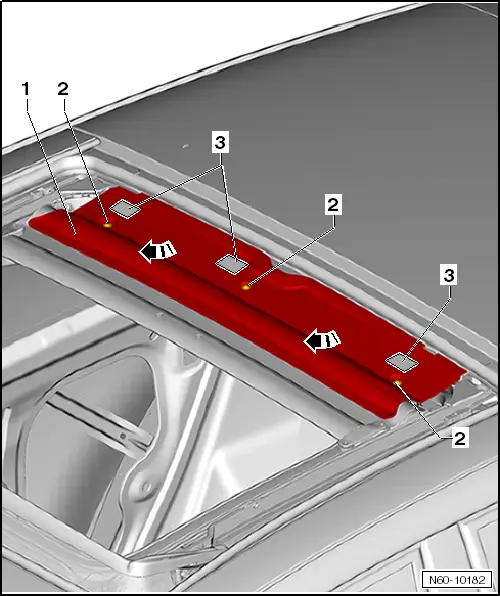

| Removing and installing cover |
| Removing: |
| – | Remove glass panel → Chapter. |
| – | Pull self-adhesive insulation -3- off. |
| – | Remove bolts -2-. |
| – | Pull out cover upwards at an angle -arrows-. |
| Installing: |
| – | Push cover onto assembly frame. |
| – | Tighten bolts -2-. Specified torque: 2.5 Nm |
| – | Attach self-adhesive insulation -3-. |
