Polo Mk5

Removing and installing centre console with armrest
Removing and installing centre console with armrest
Removing
–  Release gearstick boot or gear shift cover from mountings → Rep. gr.34.
–  Remove hand brake lever trim → Brake system; Rep. gr.46.
–  Remove hand brake cover cap → Chapter.
–  Remove dash panel middle trims → Chapter.
–  Removing rear cup holder → Chapter.
–  Removing arm rest → Chapter.
–  Remove centre console cover → Chapter.

–  Remove cover -1- from centre console.
  N68-10382
–  Unscrew lateral bolts -1- and -2- (1.5 Nm).
–  Unscrew bolts -3- (1.5 Nm).

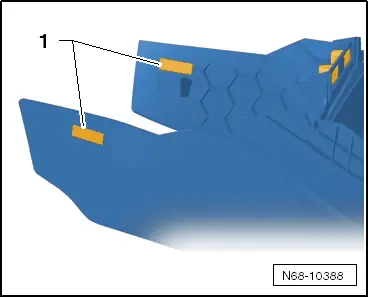

–  Release lateral Velcro straps -1-.
  N68-10388

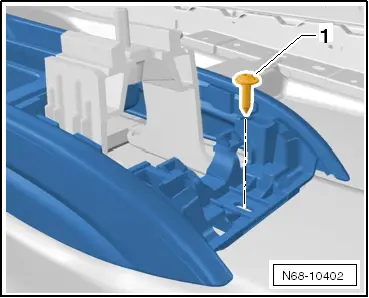

–  Unscrew bolt -1- (1.5 Nm).
  N68-10402
–  Swing centre console -1- upwards -arrow- and, depending on vehicle equipment, separate wiring harnesses.

Installing
–  Install in reverse order of removal.
