Removing and installing dash panel middle trims
Removing and installing dash panel middle trims
Removing

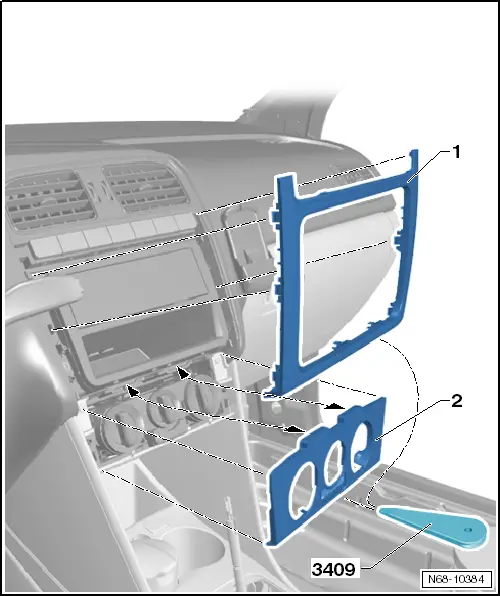

Vehicles with no Climatronic

–  Release upper trim -1- from fasteners with removal wedge -3409-.
–  Release lower trim -2- from fasteners with removal wedge -3409-.

Vehicles with Climatronic

–  Release upper trim -1- from fasteners with removal wedge -3409-.
–  Release lower trim -2- from fasteners with removal wedge -3409-.

Installing
–  Install in reverse order of removal.
