Polo Mk5

Removing and installing seat trim on tunnel side
Removing and installing seat trim on tunnel side
  Note
Removal and installation is described for the left seat. Apply the same instructions for removal and installation of the right seat as appropriate.
Removing
–  Remove front seat → Chapter.
–  Removing front belt buckle → Chapter.

–  Unscrew bolt -1- (2 Nm) and unclip seat trim from mountings.
Installing
–  Install in reverse order of removal.

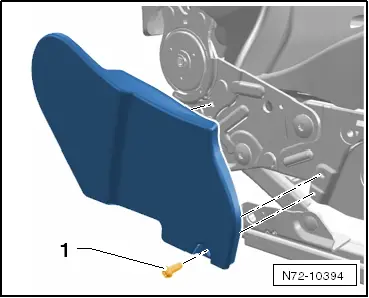

  N72-10394
