Installing Before turning piston back, draw off brake fluid from reservoir. Otherwise, particularly if reservoir has been topped up, fluid will overflow and cause damage.

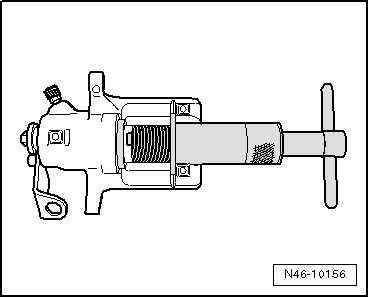

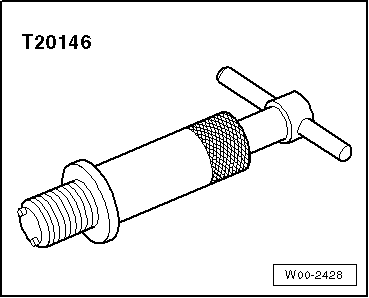

–  Turn piston to right into brake caliper with piston resetting appliance -T20146-; do not damage protective cap.

–  Thoroughly clean contact surfaces -arrows- of brake pads.

–  Pull protective foil off brake pad backplate. –  Insert brake pads into brake carrier.

–  Screw brake caliper to brake carrier with new securing bolts, counter-holding at guide pin. t  The repair kit includes 4 self-locking hexagon bolts which must always be installed.

–  Push handbrake cable into bracket on brake caliper until both locking lugs -arrows- engage. –  Push handbrake lever in direction of -arrow- and attach handbrake cable onto handbrake lever. –  Fit wheels. Specified torque of wheel bolts → Running gear, axles, steering; Rep. gr.44. –  Adjust handbrake → Chapter.   Note t  Every time after changing pads, depress brake pedal firmly several times with vehicle stationary, so that brake pads are properly seated in their normal operating position. t  Check brake fluid level after changing brake pads.

Specified torque:
Hexagon bolt, brake caliper to brake carrier t  Use new bolts.	35 Nm
