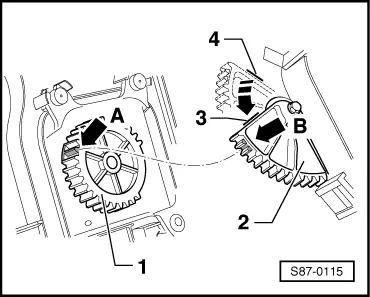

| Mark upper and lower stops -4- and -3- on housing. |
| –
| Position gear segment -2- on lower stop -3-. |
| –
| Mark „short“ tooth flank of gear wheel on control motor -1--1-. |
| –
| Mark shorter teeth on gear segment -2- on side -B-. |
| –
| Press bracket with control motor onto housing so that tooth -A- engages in gap -B-. |
| –
| Connect voltage supply connector. |
| –
| Switch on ignition and check operation of control motor by turning temperature control regulator knob. |
Note | t
| The temperature flap must move to the end positions without jerking. |
| t
| If system malfunctions, switch ignition off immediately and repeat installation sequence. |
|
|
|
