Polo Mk5

Removing clutch pedal switch
Removing clutch pedal switch
Removing
–  Remove driver side footwell cover → General body repairs, interior; Rep. gr.68.
–  Remove footwell vent → Heating, air conditioning; Rep. gr.80.
Polo 2002 ►

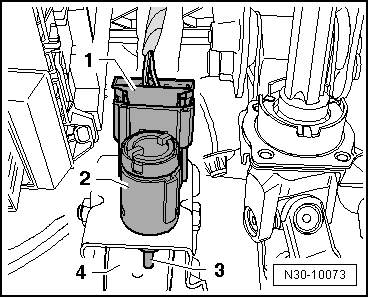

Clutch pedal switch is installed from passenger compartment.
–  Pull connector -1- off clutch pedal switch.
–  Turn clutch pedal switch-2- on mounting bracket 45° anti-clockwise and pull out of support.
  Note
t  Illustration shows clutch pedal switch up to week 44.09.
t  Clutch pedal switch from week 45.09 onwards → Fig..
Polo 2010 ►
  N30-10073

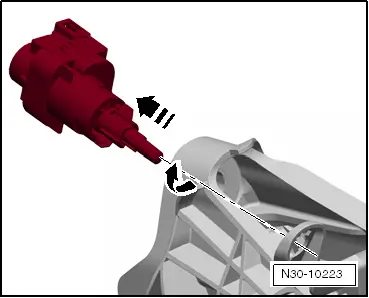

Clutch pedal switch is installed from bulkhead.
–  Pull connector off clutch pedal switch.
–  Turn clutch pedal switch on mounting bracket 45° in -direction of arrow- and pull out of support.
  Note
t  Illustration shows clutch pedal switch from week 45.09 onwards.
t  Clutch pedal switch up to week 44.09 → Fig..
  N30-10223
