Polo Mk5
| Assembly overview - hydraulics (LHD) |
| 1 - | Brake fluid reservoir |

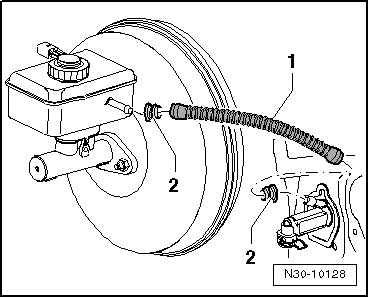

| 2 - | Supply hose |
| q | Rubber |
| q | From 12. 05, plastic → Fig. |
| 3 - | Master cylinder |
| q | Removing and installing, Polo 2002 ► → Chapter |
| q | Removing and installing, Polo 2010 ► → Chapter |
| 4 - | Clip |
| q | Pull out clip to stop to remove and install pipe/hose line |
| 5 - | Support |
| q | Renew only with master cylinder removed |

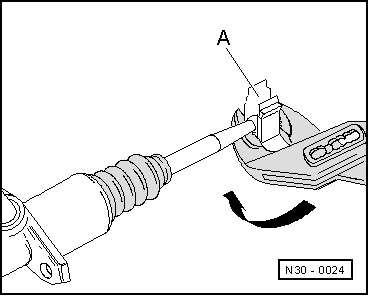

| q | Removing → Fig. |
| q | Pressing on → Fig. |
| 6 - | Clutch pedal |
| 7 - | Self-locking hexagon nut, 25 Nm |
| q | Always renew |
| 8 - | Seal / O-ring |
| q | Pull onto line connection |
| q | Insert with brake fluid |
| q | Seals/O-rings are adapted to configuration of line connection → Fig. |
| q | Allocation → Electronic parts catalogue (ETKA) |
| 9 - | Pipe/hose line |
| q | Determine according to → Electronic parts catalogue (ETKA). |
| q | To remove, remove ABS control unit with hydraulic unit → Brake system; Rep. gr.45 |
| 10 - | Bracket |
| q | Secured to body |
| 11 - | Bracket |
| q | Secured to slave cylinder of gearbox. |
| q | Only in Polo 2002 ► |
| q | Allocation → Electronic parts catalogue (ETKA) |
| 12 - | Hexagon bolt, 20 Nm |
| 13 - | Clip |
| q | Pull out clip to stop to remove and install pipe/hose line |
| 14 - | Dust cap |
| 15 - | Bleeder valve |
| q | Bleeding clutch system → Chapter |
| 16 - | Slave cylinder |
| q | Removing and installing → Chapter |
| 17 - | Gearbox |
|
|
|
|
|
|

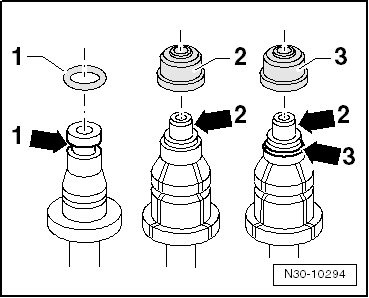

| Item | Material of line connection |
| 1 | Line connection with circumferential groove -arrow 1- |
| 2 | Line connection with shoulder -arrow 2- |
| 3 | Line connection with shoulder -arrow 2- and circumferential groove -arrow 3- |
|
|
|
