Installing support bracket (Polo)

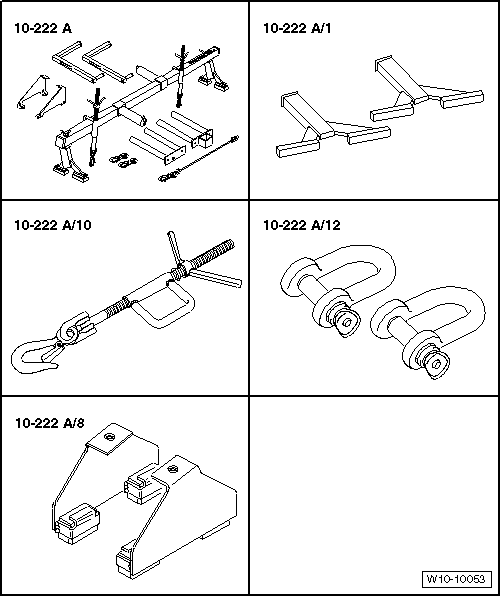

Special tools and workshop equipment required

t	Support bracket -10-222 A-

t	Adapter -10 - 222 A /8-

t	Hooks -10-222 A/10-

t	Shackle -10-222 A/12-

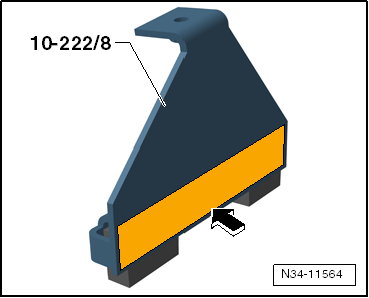

To prevent damage to edges of wings, cover lower areas of both adapters -10 - 222 A /8- with woven adhesive tape -arrow- → Electronic parts catalogue (ETKA chemical substances).

Procedure

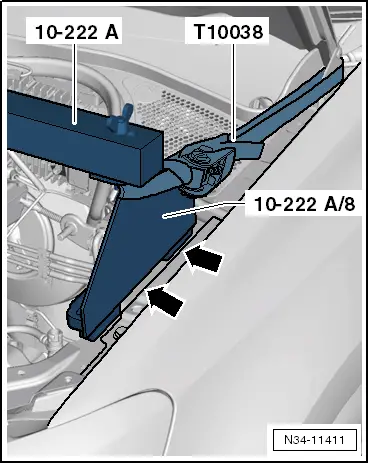

–	Set up support bracket -10 - 222 A- with necessary adapters as illustrated and support engine in installation position.

–	Pay attention to paintwork on edges -arrows-.

It is only necessary to secure the two adapters -10 - 222 A /8- with the tensioning straps -T10038- when removing the gearbox.
