Assembly mountings

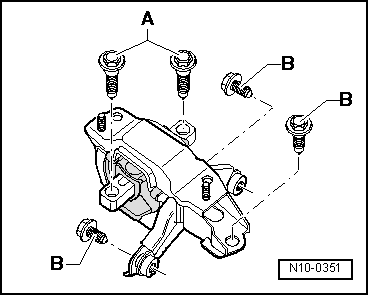

Engine assembly mountings

-A-1)	20 Nm + turn 90° further
-B-1)	30 Nm + turn 90° further
1) Renew.

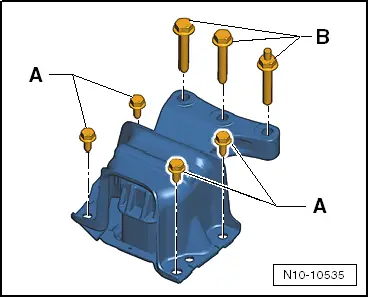

Gearbox assembly mounting

-A-1)	40 Nm + turn 90° further
-B-1)	40 Nm + turn 90° further
1) Renew.

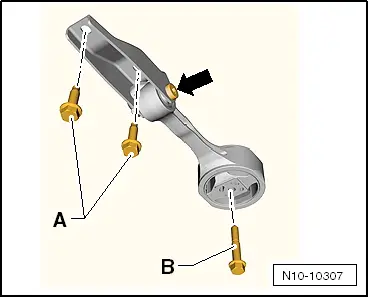

Pendulum support   Note Position bolts -A- in elongated holes of pendulum support so that the clearance between the gearbox and mountings is at its maximum.

-A-1)	30 Nm + turn 90° further
-B-1)	40 Nm + turn 90° further
-Arrow-	Must not be loosened
1) Renew.
