Removing and installing timing chain and chain drive for oil pump

Note

Timing chain must first be removed to remove chain drive for oil pump.

Remove timing chain → Chapter

Removing and installing chain drive for oil pump → Chapter

Installing timing chain → Chapter

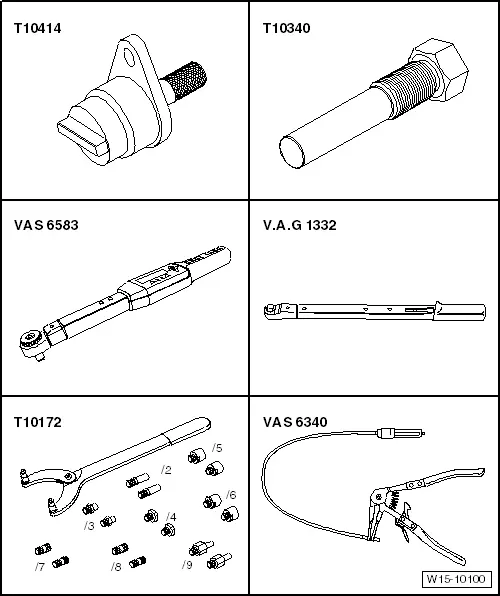

Special tools and workshop equipment required

t	Locking pin -T10414-

t	Locking pin -T10340-

t	Torque wrench -VAS 6583-

t	Torque wrench (40 … 200 Nm) -V.A.G 1332-

t	Counterhold tool -T10172-

t	Sealant D 176 501 A1

t	Sealant D 176 600 A1

t	2 studs M6x70 (e.g. bolts with sawn-off head)

t	Counterhold tool -3415-

t	Pins -3415/2-

t	Assembly tool -T10417/1-
