Polo Mk5

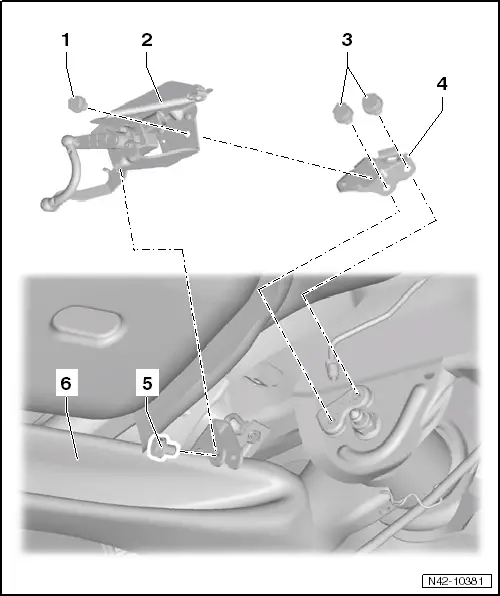

| Assembly overview - rear left vehicle level sender -G76-, front-wheel drive |
Note| The vehicle level sender is available as a replacement part only complete with coupling rod and retaining plate. |
| 1 - | Bolt |
| q | 20 Nm |
| 2 - | Rear left vehicle level sender -G76- |
| q | Complete with attachments |
| q | Removing and installing → Chapter. |
| q | Following renewal, basic settings for headlight must be performed. |
| Basic setting of headlights → Vehicle diagnosis, testing and information system VAS 5051 |
| 3 - | Bolt |
| q | 20 Nm |
| 4 - | Bracket |
| 5 - | Bolt |
| q | 15 Nm |
| 6 - | Axle beam |
