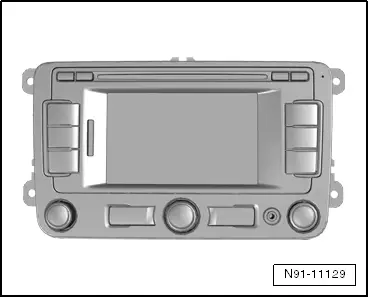

| Radio navigation system „RNS 310“ |
Note | t
| The part number for the radio navigation system is printed on a sticker on the radio navigation system housing! |
| t
| If the radio navigation system is renewed, it is vital that the anti-theft coding is deactivated, Deactivating anti-theft coding → Chapter. The new code number must be given to the customer. |
| t
| If the anti-theft code is not known it can be requested via the established systems. You need the identification number of the radio navigation system in order to make the request. It is located on a sticker on the side of the radio unit. In addition, the identification number is also stamped into the material of the side wall of the radio navigation system. |
| t
| If a radio navigation unit from one vehicle is fitted into another vehicle, it is essential that the part number of the replacement unit is the same as that of the unit previously installed. Otherwise faults will occur with the navigation because the turn angle sensor setting in the radio navigation system will not be compatible with the vehicle. |
Note | t
| When faced with complaints, it is absolutely necessary to know the functions and the operation of the radio navigation system. |
| t
| The anti-theft coding uses a fixed code, deactivating electronic anti-theft system → Chapter. |
| t
| For perfect operation of the navigation system, the turn angle sensor in the unit has to be adjusted according to the installation position of the unit in the vehicle. Therefore, always note the part number when exchanging equipment. Incorrect installation could lead to a malfunction in the navigation system. |
| t
| When the battery is reconnected, check operation of electrical equipment (radio, clock, convenience electronics etc.) according to the workshop manual and/or operating manual. |
|
|
|
