Rear Bumper Reinforcement: Service and Repair

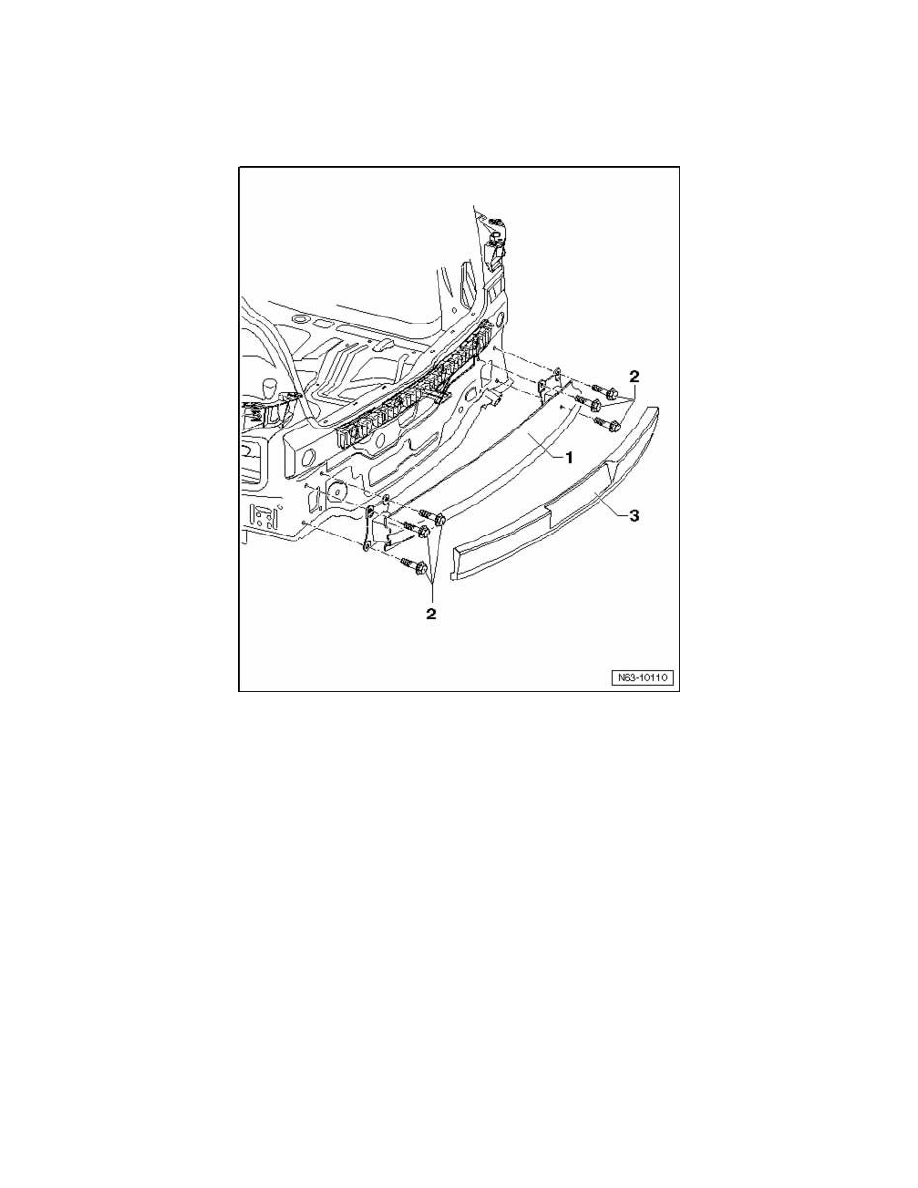

Rear Bumper Carrier Assembly Overview, R32

Rear Bumper Carrier Assembly Overview, R32

NOTE:  Depending on the version, the removal and installation process may be slightly different.

1

-

Cross member

2

-

Bolt
-

Qty. 6

-

20 Nm

3

-

Foam piece
-

Only installed in some countries.

-

Self-adhesive

-

In different formations.
