R32 4Motion V6-3.2L (CBRA) (2008)
/Page-1781002.png)
-

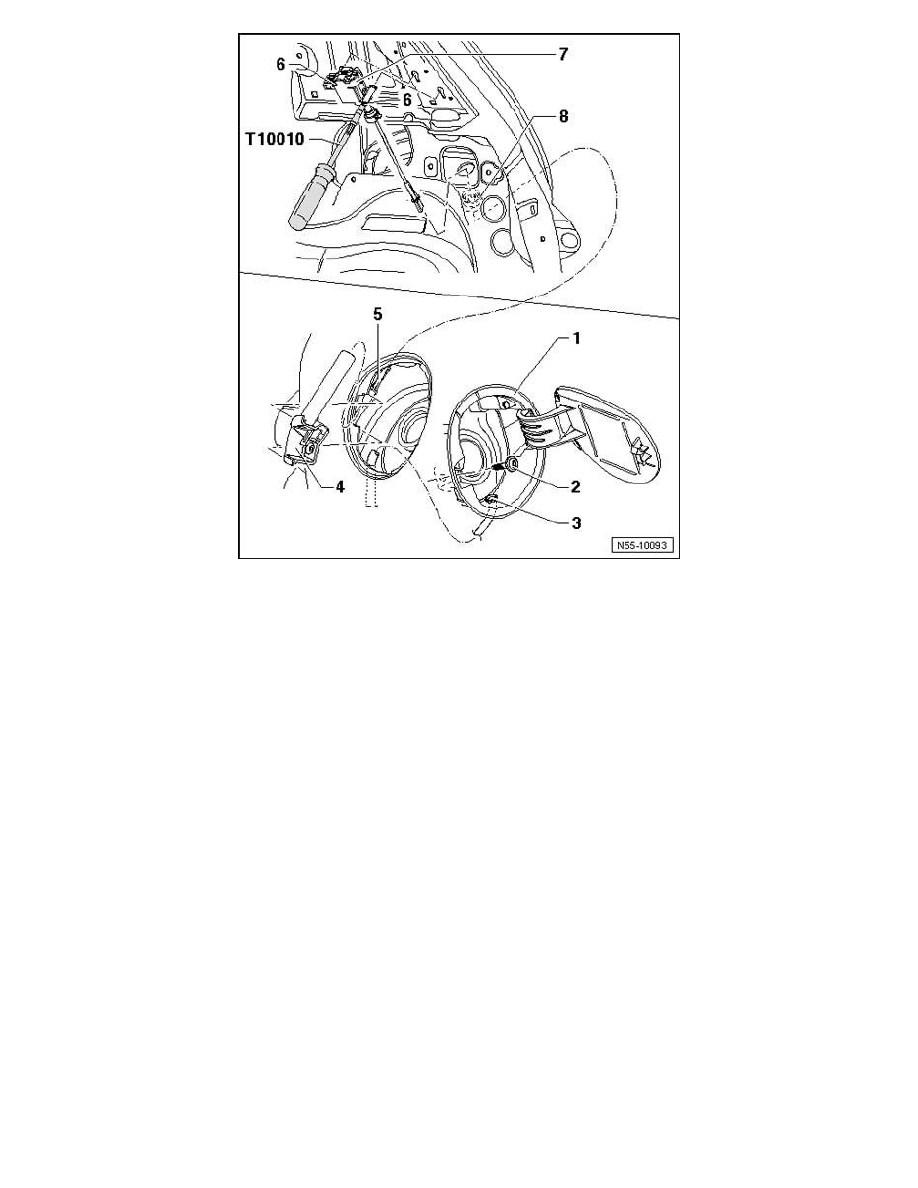

Disconnect harness connector at actuator - 7 -.
-
Remove actuator - 7 - using special tool socket wrench T 10010 .
-
Remove actuator - 7 - together with release rod - 5 - from seal - 8 -.
Installing
To install, perform the steps used for removal in reverse order.
