R32 4Motion V6-3.2L (CBRA) (2008)

Page 1
background image

Hood Insulator / Pad: Service and Repair

Insulation

Removing

-

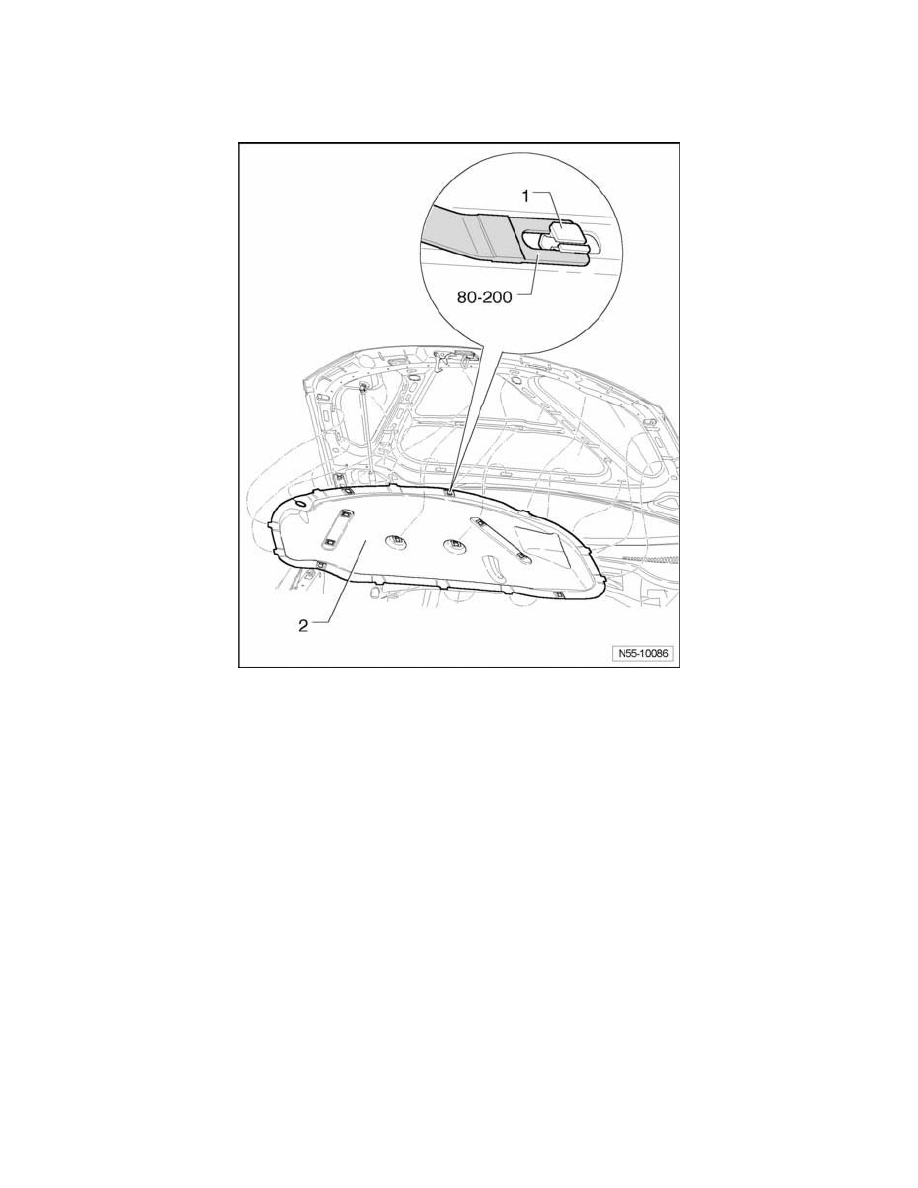

Using pry lever 80-200 , pry out retaining clips - 1 - (Qty. 10) from insulation - 2 -.
