R32 4Motion V6-3.2L (CBRA) (2008)

Page 16
background image

-

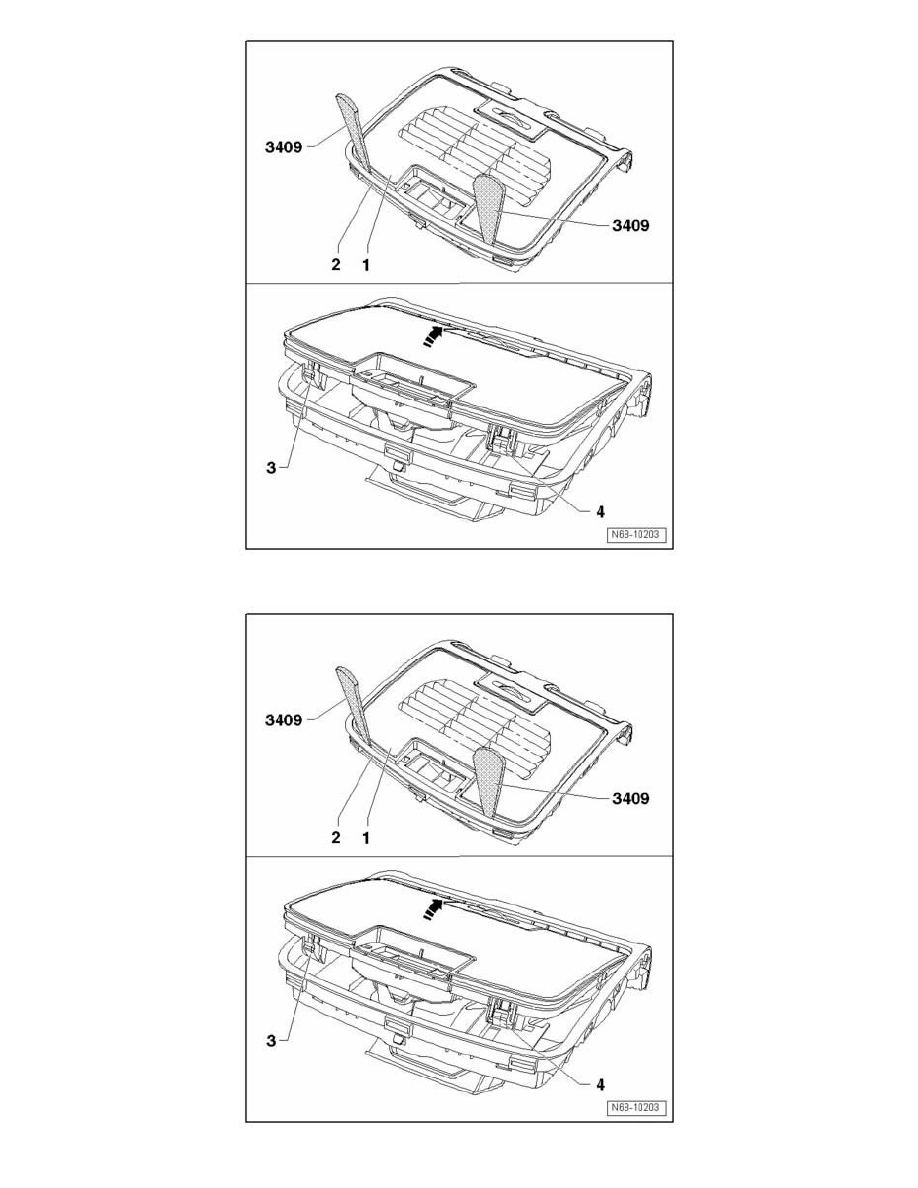

Press metal clips - 3 - and - 4 - back with trim removal wedge 3409 and remove indirect ventilation upward out of mounts in vent - arrow -.
