Page 28

background image

-

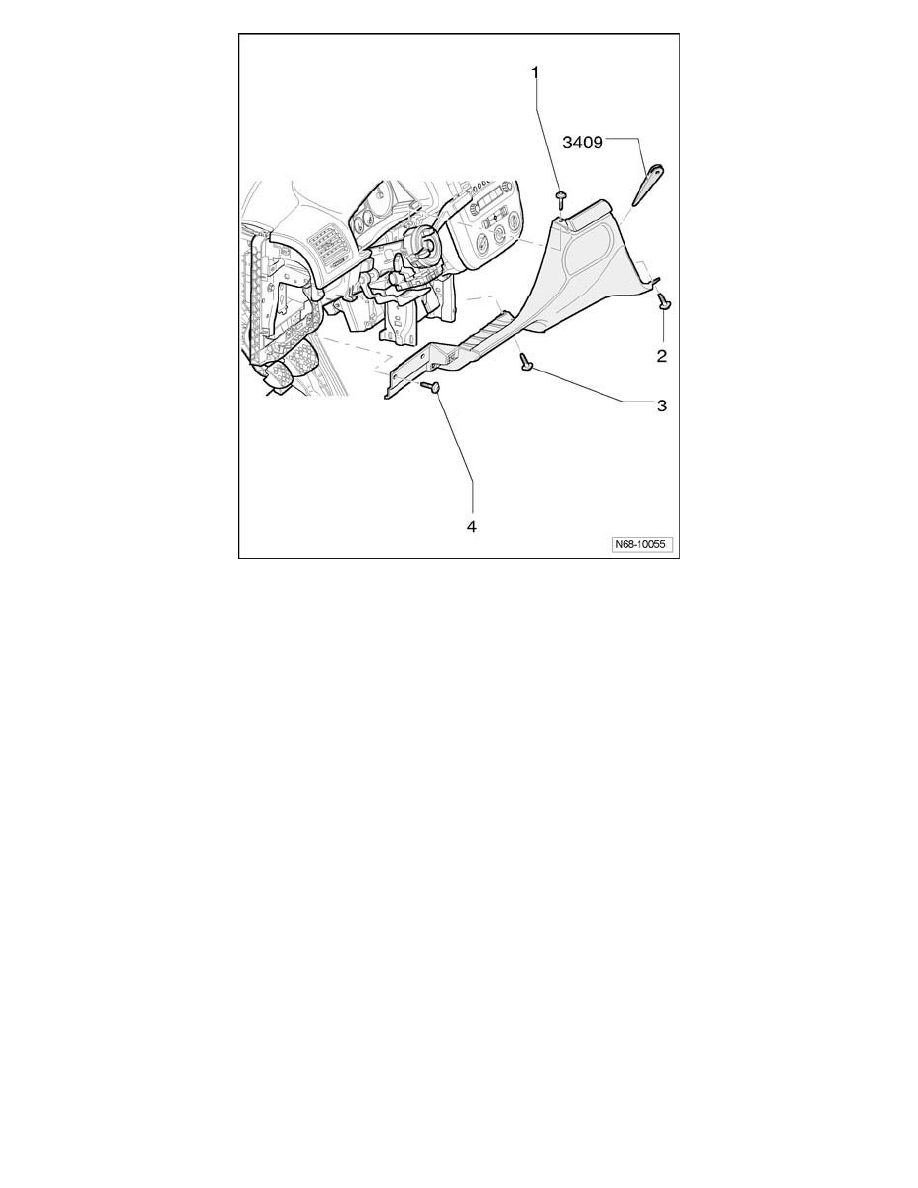

Using trim removal wedge 3409 , disengage trim panel from mounts.

Instrument Panel, Gauges and Warning Indicators
Dashboard / Instrument Panel / Component Information
Service and Repair / Footwell Cover, Driver Side
Page 7370
