R32 4Motion V6-3.2L (CBRA) (2008)
/Page-2013004.png)
-

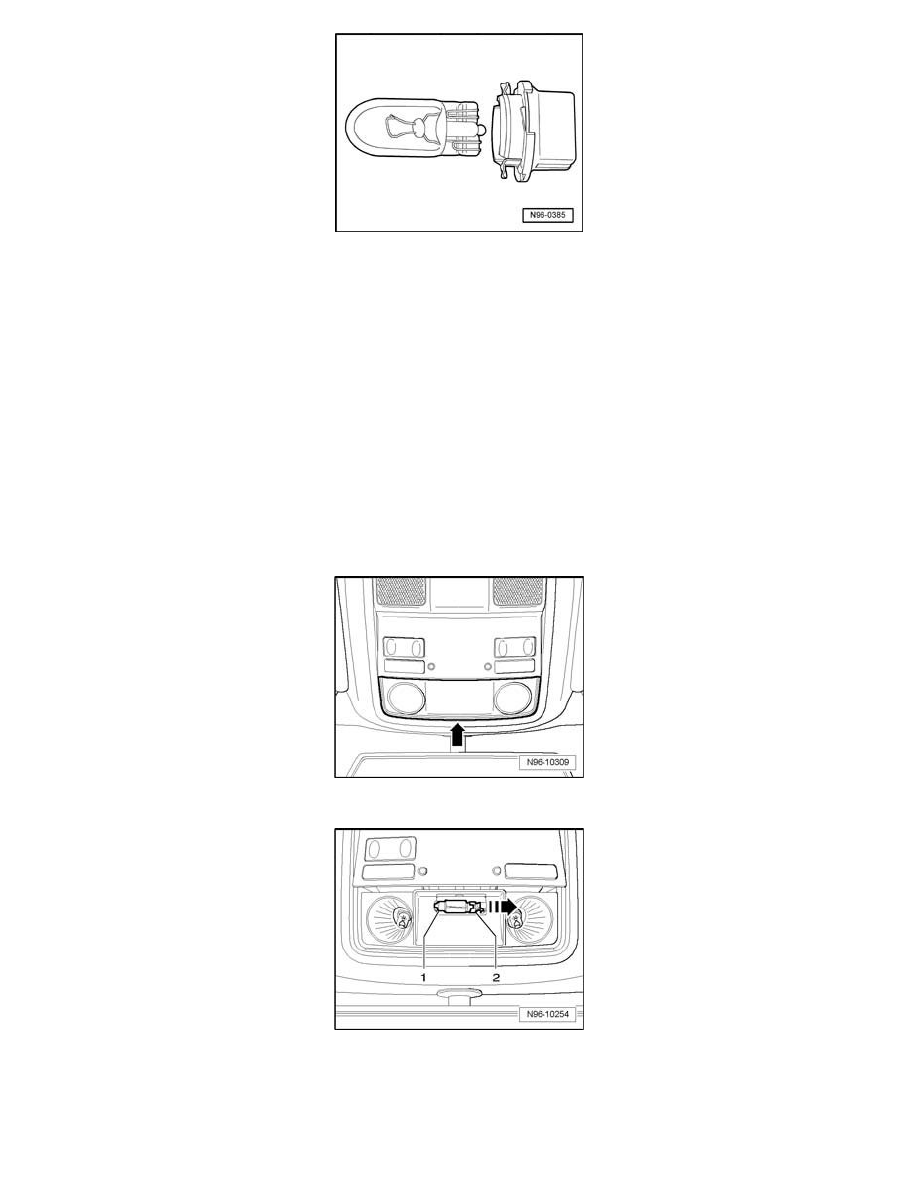

Carefully remove glass socket lamp out of socket.
-
Replace the bulb (12 V, 5 W).
Installing
Install in reverse order of removal.
Front Interior Lamp Bulbs, Without Sunroof
Front Interior Lamp Bulbs, Without Sunroof
Special tools, testers and auxiliary items required
-
Trim removal wedge VAS 3409
NOTE: When removing and installing components in a visible area (switches, covers, trim, etc.), mask off the areas at which a prying tool (trim
removal wedge VAS 3409, screwdriver) will be positioned, using commercially available adhesive tape.
Removing
-
Turn off the ignition and all electrical consumers.
-
Carefully pry diffusion lens out of interior lamp - arrow - using trim removal wedge VAS 3409 or a screwdriver.
-
Push contact plate - 1 - of lamp to the side - arrow - and remove soffit - 2 - with contact plate out of interior lamp.
