Volkswagen Workshop Service and Repair Manuals > R32 4Motion V6-3.2L (CBRA) (2008) > Power and Ground Distribution | Fuse | Component Information | Locations | Fuse Block Location | Page 4100

Fuse Block Location|Page 4101 > < Fuse Block Location|Page 4099

Page 22

background image

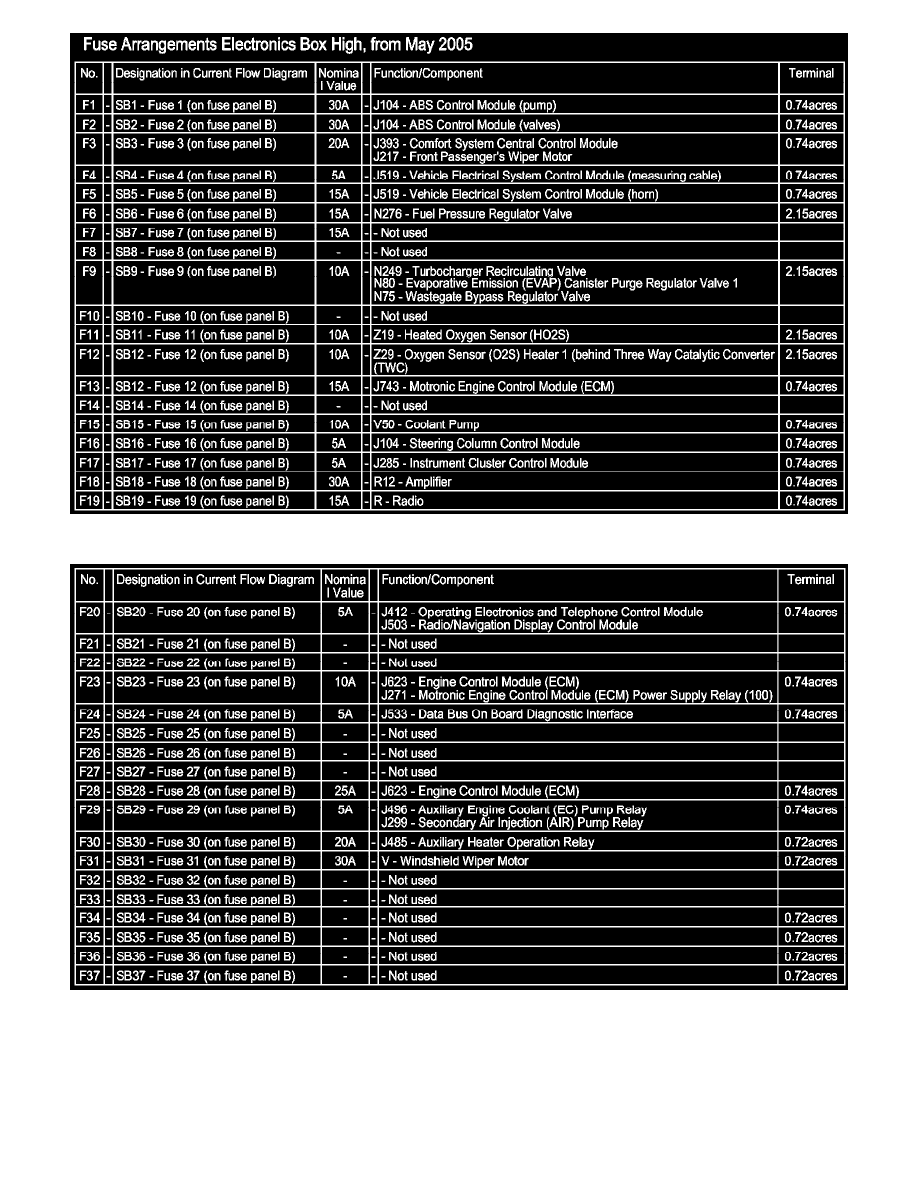

Fuse Arrangements Electronics Box High Part 1

Fuse Arrangements Electronics Box High Part 2

Power and Ground Distribution
Fuse / Fuse Block Location
Page 4100

Fuse Block Location|Page 4101 > < Fuse Block Location|Page 4099
