Page 2
background image

-

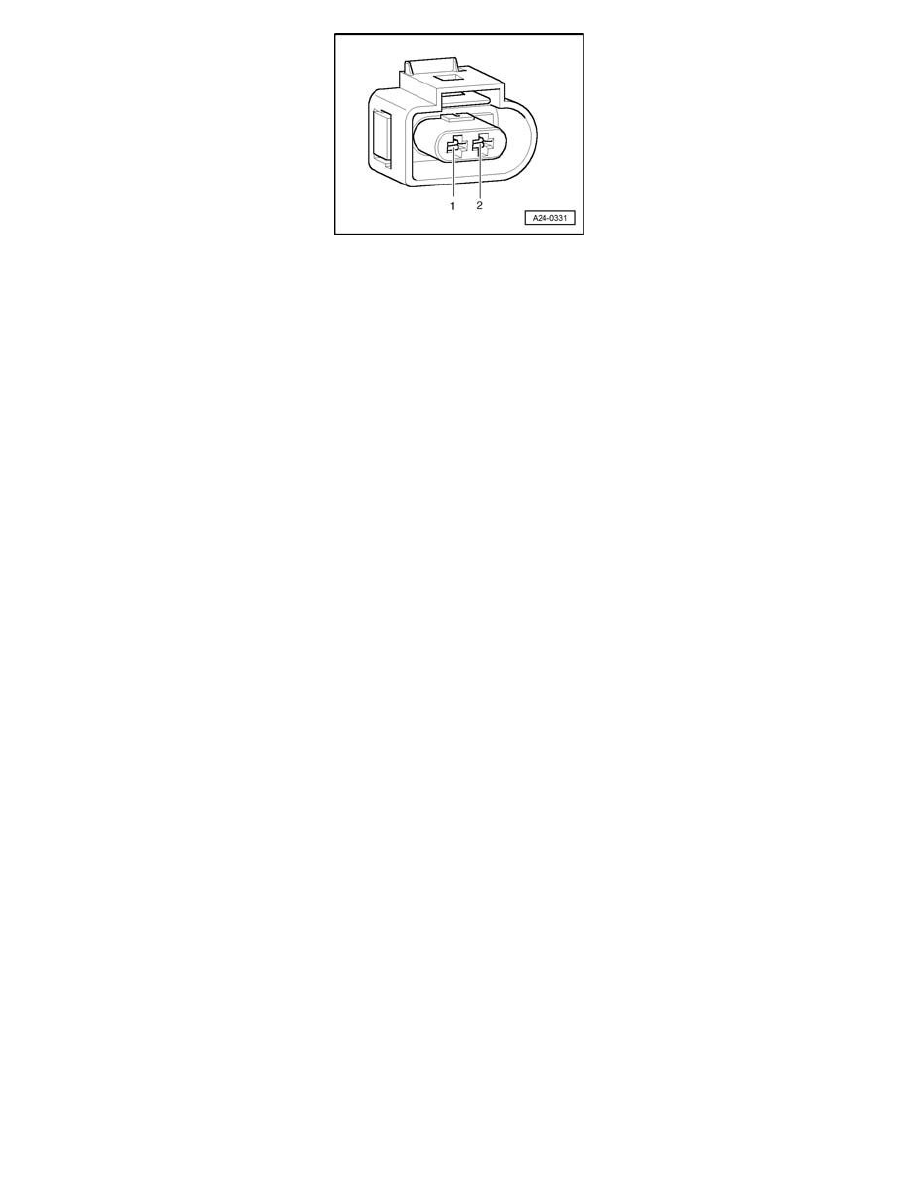

Using a Multimeter, check the Intake Manifold Tuning (IMT) Valve N156 electrical harness connector terminal 1 to ground (GND) for voltage.

Specified value: battery voltage.

-

Switch the ignition off.

If the specified value was not obtained:

-

Check the wiring from the Intake Manifold Tuning (IMT) Valve N156 electrical harness connector terminal 1 to the Power Supply Relay (terminal
30, B-) J317 terminal 87 for an open circuit or a short circuit to Ground (GND).

-

Check the electrical harness connector for damage, corrosion, loose or broken terminals.

-

If necessary, repair the wiring connection.

If no malfunctions are found in the wiring:

Checking wiring

If the specified value was not obtained:

If the manufacturers test box is being used. Perform the following step.

-

Install the test box.

If the manufacturers test box is not being used. Perform the following step.

-

Remove the Engine Control Module (ECM) J623.

-

Using a multimeter, check the Intake Manifold Tuning (IMT) Valve N156 electrical harness connector terminal 2 to the Engine Control Module
(ECM) J623 electrical harness connector T121 terminal 121 for resistance.

Intake Manifold Tuning

Engine Control Module (ECM) J623

(IMT) Valve N156 electrical

electrical harness connector T121

harness connector terminal

terminal or test box socket

2

121

Specified value: 1.5 ohms Max.

If the specification was not obtained:

-

Check the wiring for an open circuit, a short circuit to each other, Battery (+), or Ground (GND).

-

Check the electrical harness connector for damage, corrosion, loose or broken terminals.

-

If necessary, repair the faulty wiring connection.

If no malfunction is found in the wiring:

-

Erase the DTC memory.  See: Computers and Control Systems/Testing and Inspection/Scan Tool Testing and Procedures/Diagnostic Mode 04 -
Erase DTC Memory

-

Perform a road test to verify repair.

If the DTC does not return:

Repair complete, Generate readiness code.  See: Computers and Control Systems/Testing and Inspection/Monitors, Trips, Drive Cycles and Readiness
Codes

-

End diagnosis.
