Fuses In Engine Compartment|Page 3870 > < Fuses In Engine Compartment|Page 3868

Fuses In Engine Compartment | 2008 R32 4Motion V6-32L (CBRA) | Power Distribution

Page 11
background image

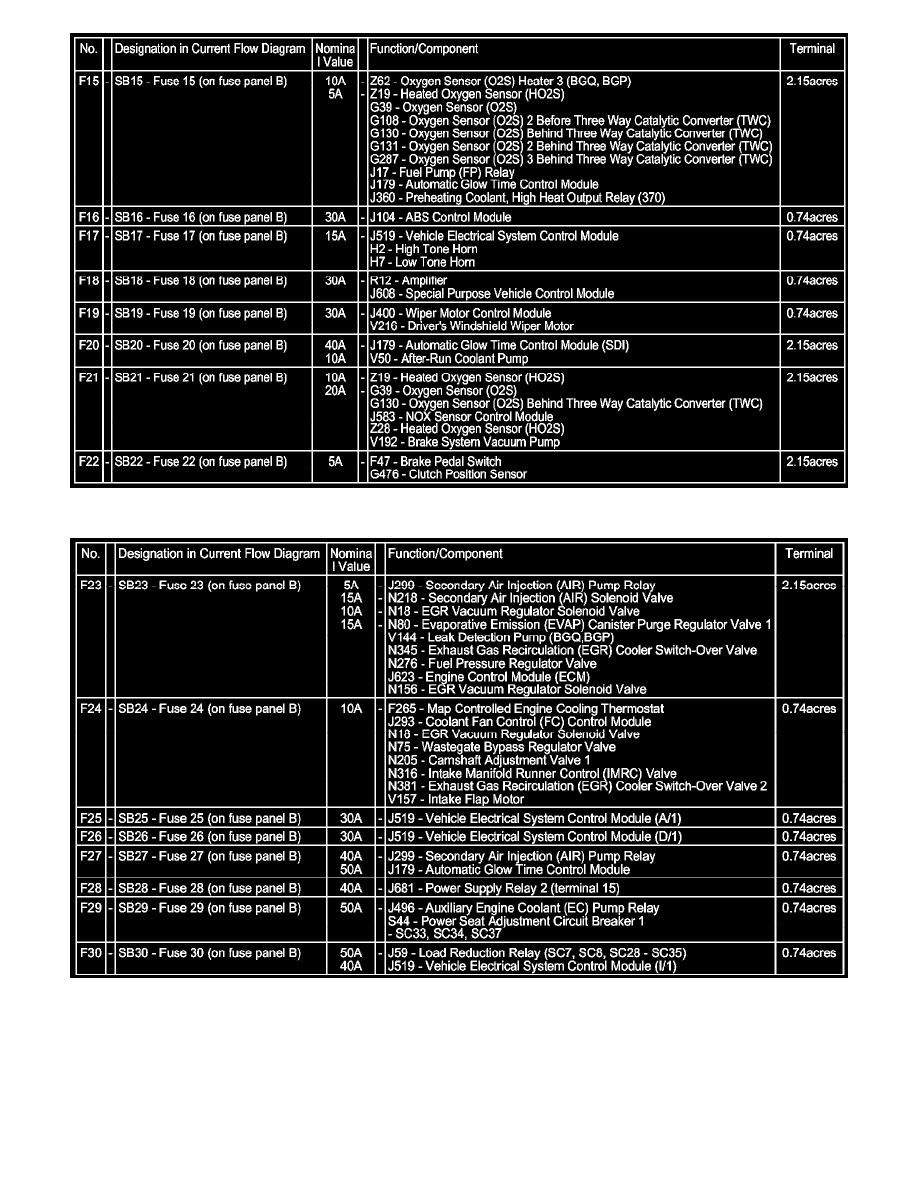

Fuse Arrangements Electronics Box Low Part 2

Fuse Arrangements Electronics Box Low Part 3

Fuses (SB) on Electronics Box High, Engine Compartment, Left

Fuses In Engine Compartment|Page 3870 > < Fuses In Engine Compartment|Page 3868
