R32 4Motion V6-3.2L (CBRA) (2008)
/Page-1403006.png)

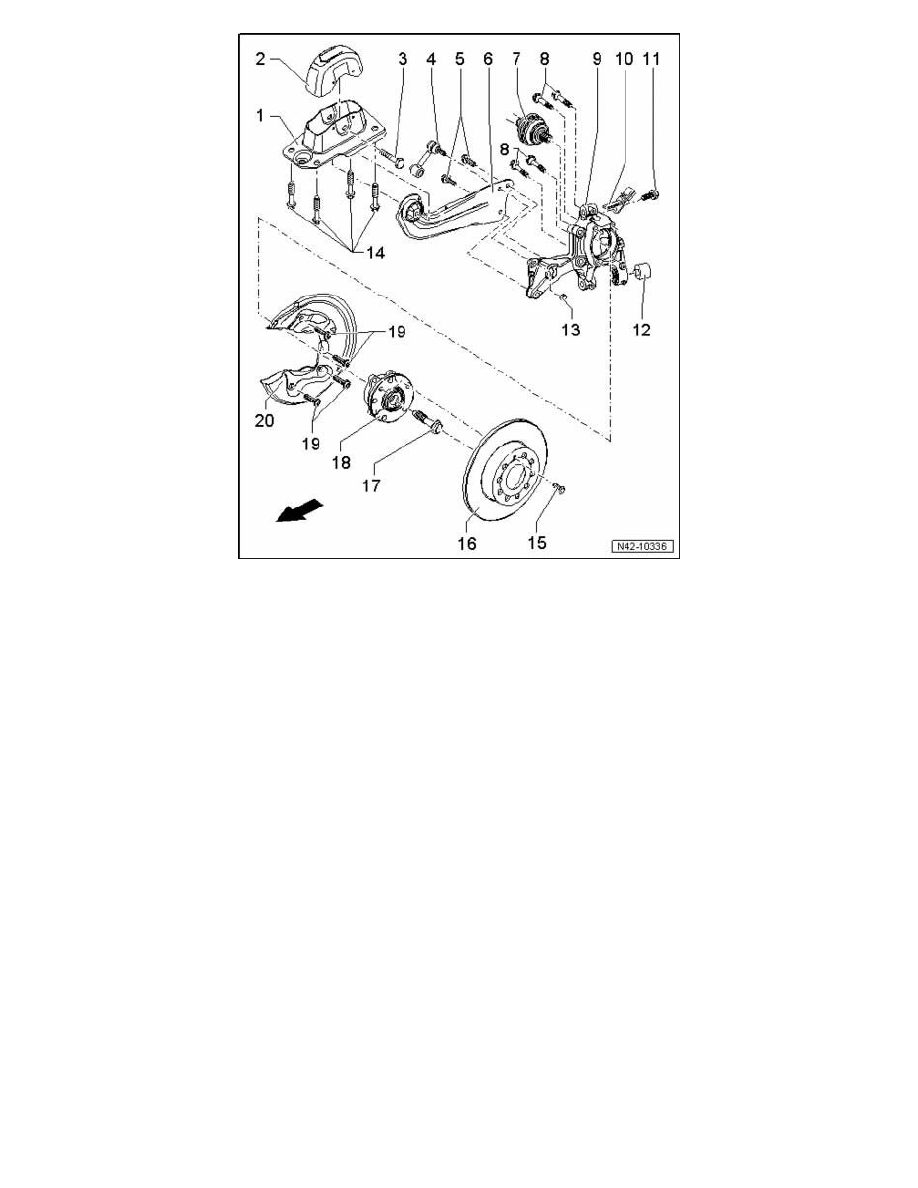

1 - Mounting bracket
2 - Cover
3 - Bolt
^
M12 x 1.5 x 80
^
90 Nm plus an additional 90° turn
^
Always replace after removal
4 - Coupling rod
^
Connects stabilizer bar to longitudinal control arm/wheel bearing housing
5 - Bolt
^
90 Nm plus an additional 45° turn
^
Observe tightening sequence
^
Always replace after removal
6 - Trailing link
^
Removing and installing
7 - Drive Shaft
8 - Socket head bolt
^
M14 x 1.5 x 45
^
70 Nm plus an additional 90° additional turn
^
Always replace after removal
9 - Wheel Bearing Housing
^
A mixed installation of steel wheel bearing housings is permissible
^
Only aluminum wheel bearing housing are available as a replacement part; therefore when exchanging, there are certain parts which must be
exchanged and/or additionally installed
10 - Right Rear ABS Wheel Speed Sensor G44 / Left Rear ABS Wheel Speed Sensor G46
^
Can be tested in Guided Fault Finding using the Vehicle diagnosis, testing and information system VAS 5051
^
Before inserting sensor, clean inner surface of mounting hole and coat with Polycarbamide grease G 000 650
11 - Socket head bolt
^
M6 x 16
^
8 Nm
12 - Bonded rubber bushing
13 - Nut
^
M12 x 25
^
40 Nm
