Control Module: Locations

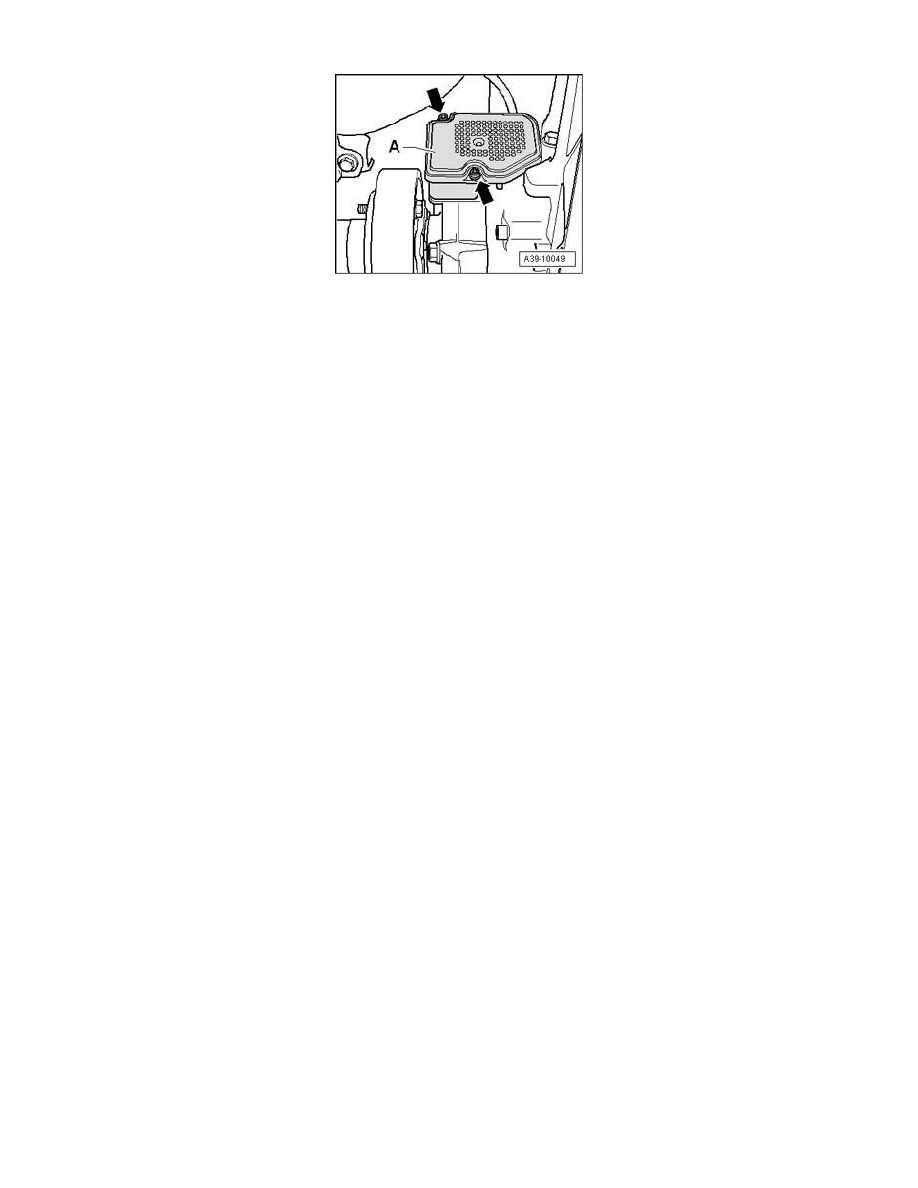

All-Wheel Drive Control Module J492

Location: Control module -A- is located in rear final drive in front left area.
