Relay Arrangements, Under Left Instrument Panel, Electronics Box Low|Page 7860 > < Drip Rail|Page 7854

R32 4Motion V6-3.2L (CBRA) (2008)

  • Wiper and Washer Systems
  • Headlamp Washer Motor Relay
  • Component Information
  • Locations
  • Relay Arrangements, Under Left Instrument Panel, Electronics Box Low

Page 1

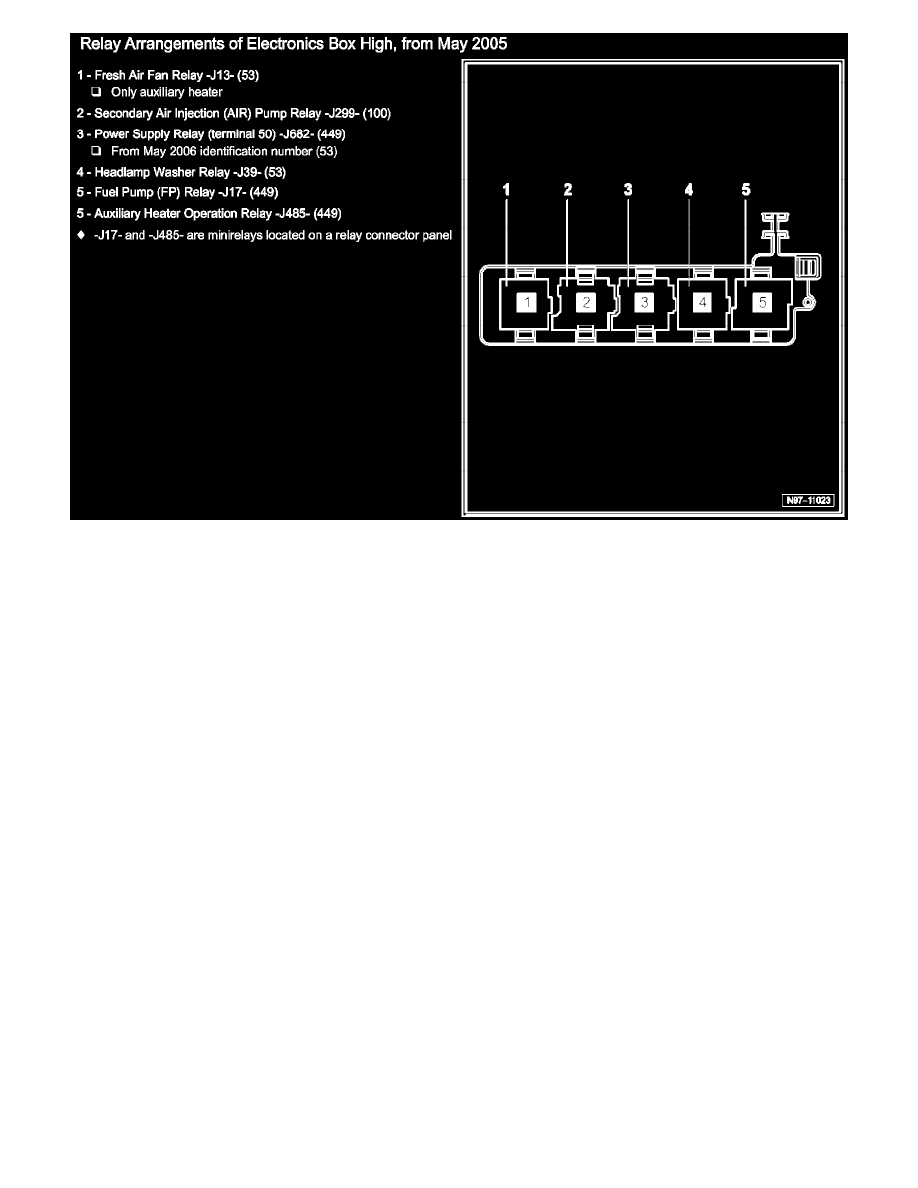

background image

Relay Arrangements, Under Left Instrument Panel, Electronics Box Low

  • Wiper and Washer Systems
  • Headlamp Washer Motor Relay
  • Component Information
  • Locations
  • Relay Arrangements, Under Left Instrument Panel, Electronics Box Low
