Tiguan 4Motion (5N1) L4-2.0L Turbo (CCTA) (2009)
/l4-2.0l_turbo_(ccta)/Page-256005.png)
-

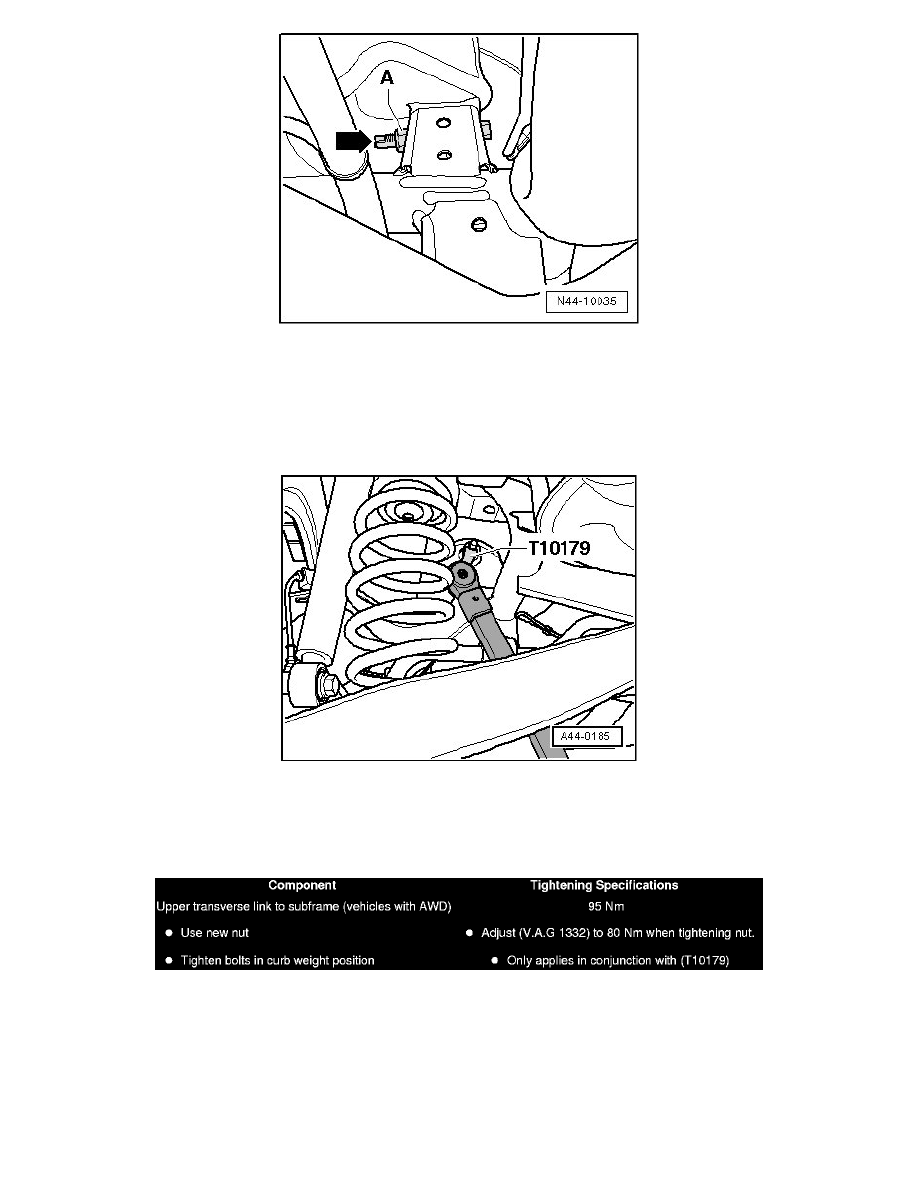

Adjust camber by turning hex of eccentric bolt - arrow -.
‹› The maximum adjustment range is 90° to left or right of center position.
-
Tighten nut - A -.
-
To do so, use (T10179).
When using (T10179), tighten nut to 80 Nm.
-
After tightening the nut - A -, check the camber value once again.
Tightening Specifications
Rear Axle Toe, Adjusting
Rear Axle Toe, Adjusting
Special tools, testers and auxiliary items required
‹› Torque wrench (V.A.G 1332)
-
Loosen nut - 1 -.
