Tiguan 4Motion (5N1) L4-2.0L Turbo (CCTA) (2009)
/l4-2.0l_turbo_(ccta)/Page-858003.png)

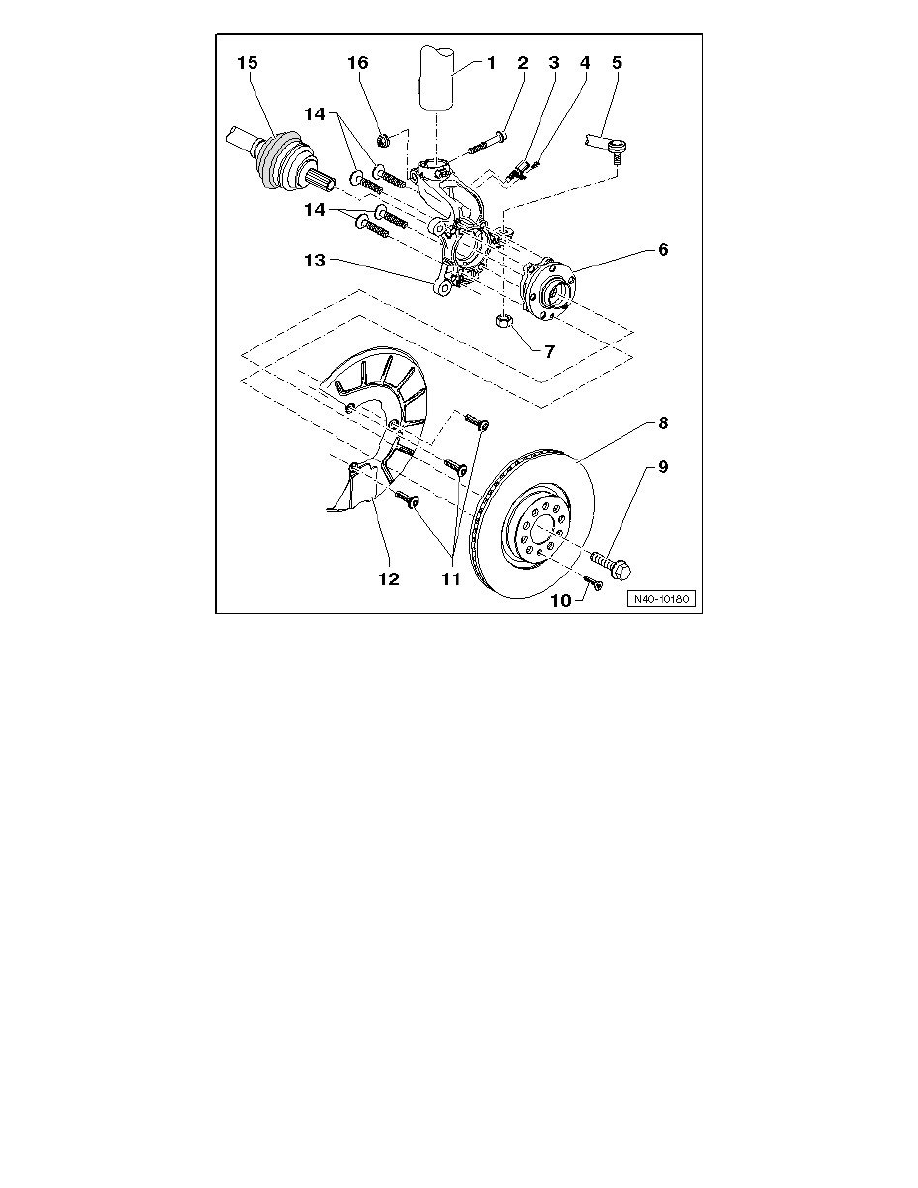

1
Suspension Strut
2
Bolt
‹› Bolt point must face in direction of travel.
‹› Always replace after removal.
3
Left Front ABS Wheel Speed Sensor (G47)/Right Front ABS Wheel Speed Sensor (G45)
‹› Can be checked in Guided Fault Finding using the Vehicle Diagnosis, Testing and Information System (VAS 5051B).
‹› Before inserting wheel speed sensor, clean inner surface of bore hole and coat with securing grease (G 000 650).
4
Bolt
‹› M6 x 16
‹› 8 Nm
5
Tie Rod End
6
Wheel Hub with Wheel Bearing
‹› Sensor ring for ABS is installed in wheel hub.
‹› Various versions.
7
Nut
