Seals and Gaskets: Service and Repair

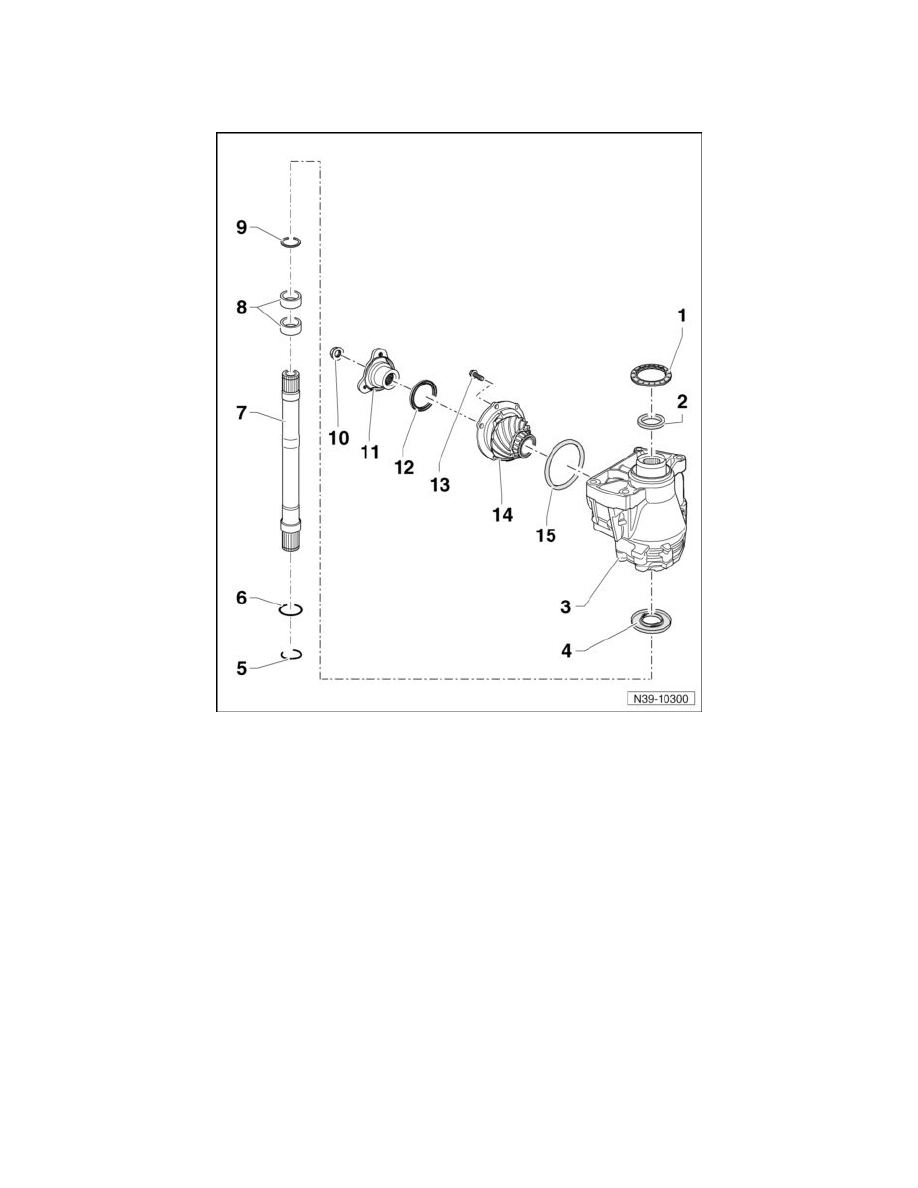

Bevel Box Assembly Overview
Bevel Box Assembly Overview
1
Seal, Left
‹› Between the bevel box and transmission.
‹› Remove the bevel box to replace, refer to one of the following:
Passat and CC, refer to => [ Bevel Box ] See: Service and Repair/Removal and Replacement/Bevel Box.
Tiguan, refer to => [ Bevel Box ] See: Service and Repair/Removal and Replacement/Bevel Box.
‹› If there are leaks, also replace the small inner seal - item 2 -.
‹› Replacing, refer to => [ Bevel Box Seals ] See: Bevel Box Seals.
2
Seal, Left
‹› Between the bevel box and transmission.
‹› Remove the bevel box to replace, refer to one of the following:
Passat and CC, refer to => [ Bevel Box ] See: Service and Repair/Removal and Replacement/Bevel Box.
Tiguan, refer to => [ Bevel Box ] See: Service and Repair/Removal and Replacement/Bevel Box.
